Customer Manufacturing Challenge

In traditional assembly processes, multiple stations often require independent material transfer solutions, which can lead to:

Complex production line layouts

Low space utilization

Difficult synchronization between workstations

Increased manual handling requirements

Inconsistent positioning accuracy during assembly

For cooling fan component manufacturing, stable positioning and smooth circulation are critical because assembly processes require repeated loading, positioning, and inspection operations.

The customer needed an automation solution that could:

Support multi-station continuous production

Improve production line flexibility

Reduce manual transfer operations

Maintain stable positioning performance

Adapt to customized assembly processes

Customized Circular Guide Rail Conveyor Solution

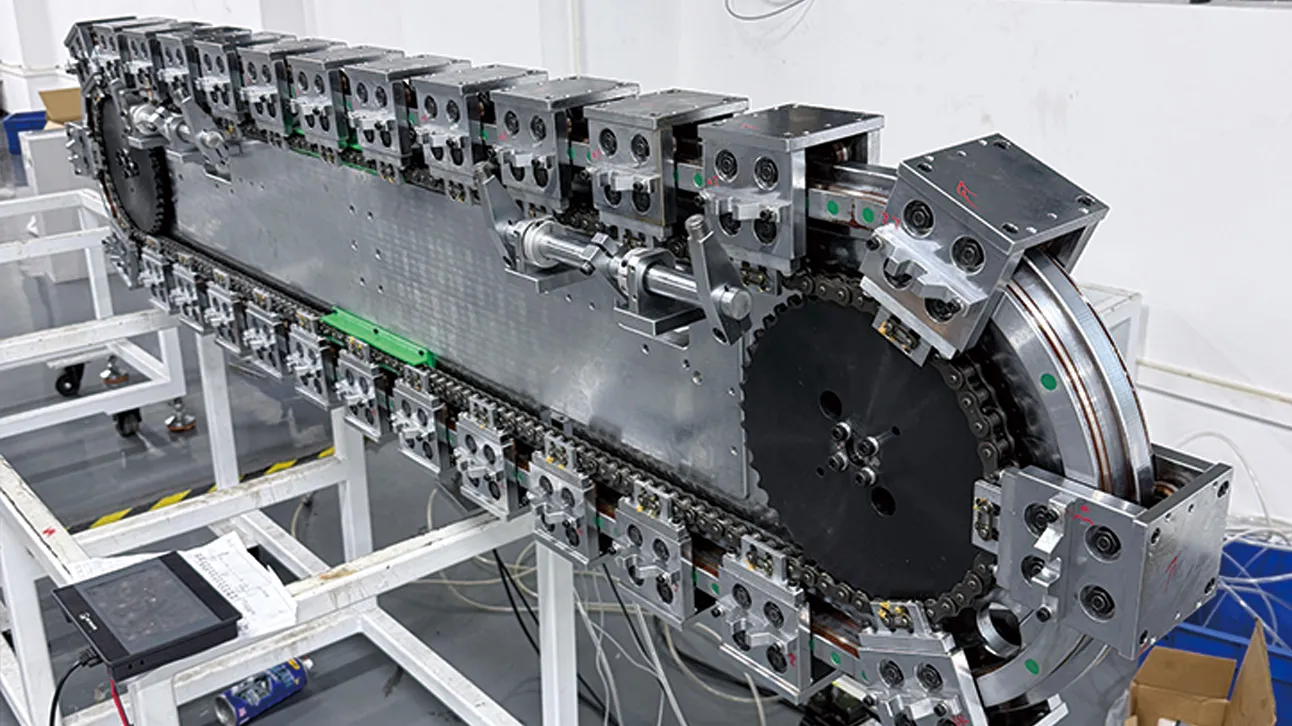

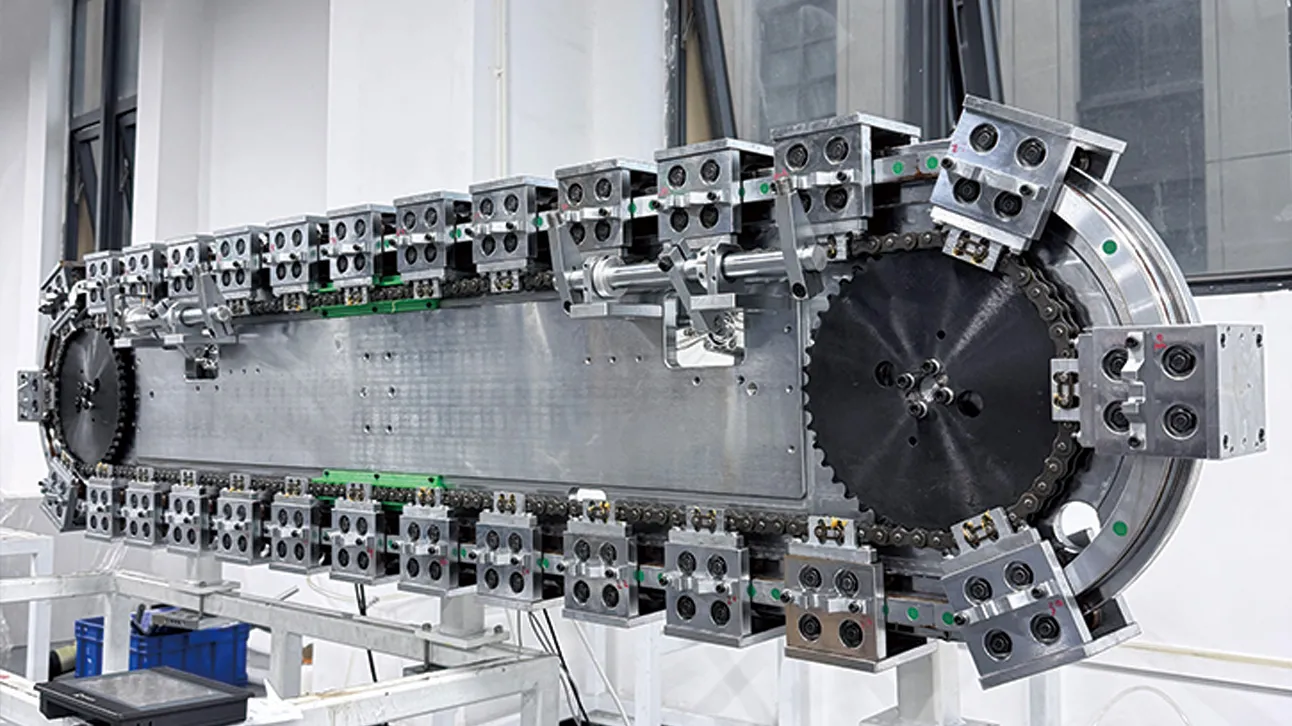

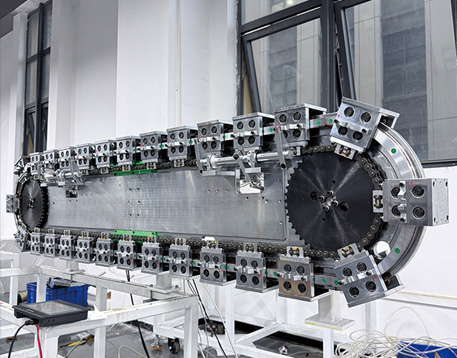

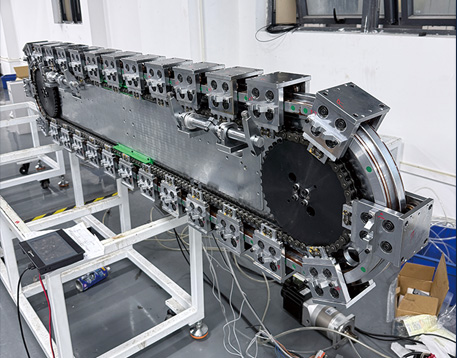

Based on the customer's production requirements, ZhenJi Automation designed a customized circular guide rail conveyor system for the cooling component assembly line.

The solution integrates a closed-loop conveying structure, allowing workpieces to circulate between different processing stations efficiently.

Key Features of the Solution

1. Closed-loop Circular Conveying Layout

The circular conveyor design allows multiple workstations to be arranged around the transport path.

Compared with traditional linear conveying solutions, the closed-loop structure helps optimize factory space utilization while improving the continuity of automated production processes.

2. Precision Positioning for Automated Assembly

The circular guide rail system provides stable movement and repeat positioning capability, supporting precision assembly applications where consistent positioning is required.

ZhenJi circular conveyor systems can achieve repeat positioning accuracy up to ±0.05mm, depending on system design, manufacturing process, and component selection.

This makes them suitable for applications including:

Automated assembly

Inspection processes

Component installation

Precision manufacturing

3. Modular Design for Flexible Production

The conveyor system adopts a modular design concept, allowing customization according to:

Production layout requirements

Number of workstations

Product size

Assembly process requirements

Equipment integration needs

This provides greater flexibility for manufacturers handling different production models.

Manufacturing Capability & Delivery Assurance

As a precision automation equipment manufacturer, ZhenJi Automation focuses on the development and manufacturing of circular guide rail conveyor systems and customized automation solutions.

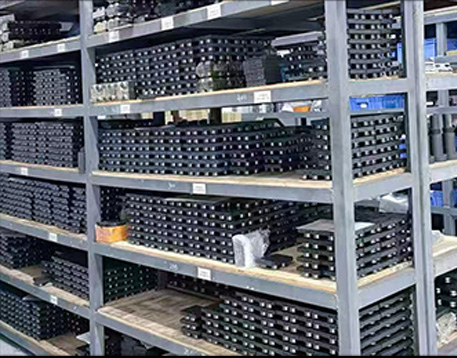

To support efficient project delivery and customer requirements, the company maintains a manufacturing inventory reserve exceeding RMB 3 million.

The inventory includes standard circular guide rail components, transmission modules, and automation-related parts, helping shorten preparation time for customized projects.

Manufacturing Advantages

RMB 3 million+ production inventory reserve

Standard components available for faster project response

Customized circular conveyor system manufacturing capability

Professional engineering support from solution design to assembly

Flexible production capacity for industrial automation projects

With integrated manufacturing capabilities, ZhenJi Automation can provide customers with a complete service process from technical communication, solution design, production manufacturing, assembly testing, and delivery support.

Application Process Integration

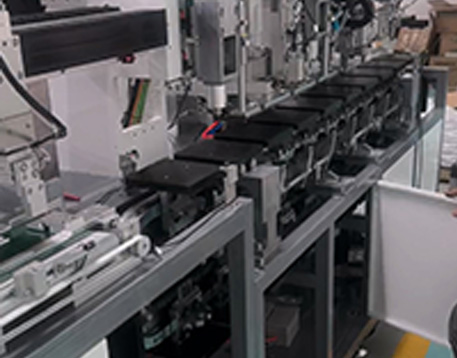

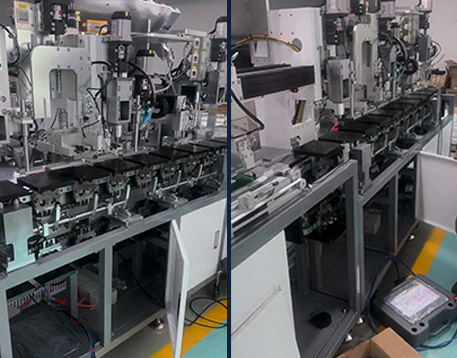

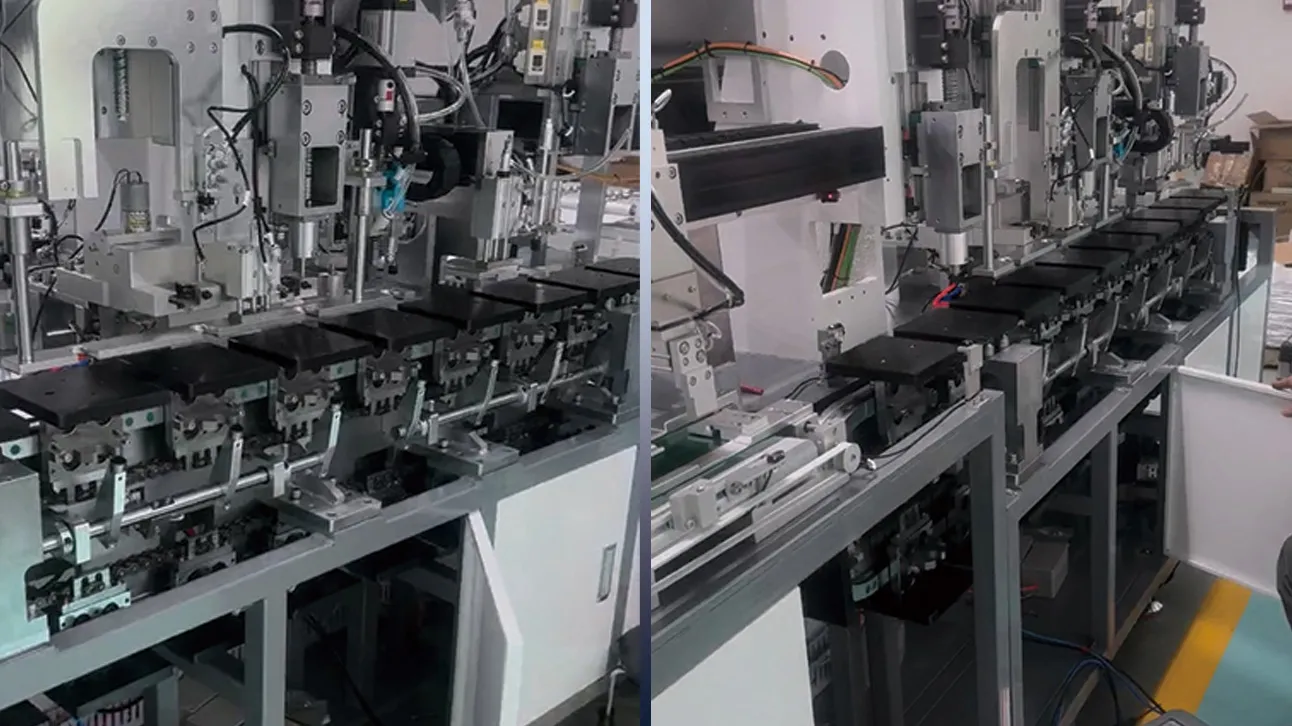

The customized circular guide rail conveyor system was applied to the fan cooling component automated assembly production line.

The system supports the connection of multiple production processes, including:

Component loading

Automated conveying

Assembly operations

Process inspection

Finished product transfer

Through continuous circulation operation, the conveyor system helps maintain stable production rhythm and improves automation integration efficiency.

Project Value

Optimized Production Flow

The closed-loop conveyor structure improves the connection between different workstations and reduces unnecessary transfer operations.

Flexible Production Layout

The modular circular design allows easier adaptation to different production environments and automation requirements.

Reliable Automation Integration

The precision conveying structure provides stable support for automated assembly processes.

Improved Manufacturing Efficiency

By integrating conveying and assembly processes, the solution helps manufacturers build a more organized and efficient production workflow.

Why Choose Circular Guide Rail Conveyor Systems for Automated Manufacturing?

Circular guide rail conveyor systems are widely used in industrial automation because they provide:

Precision positioning capability

Flexible production layouts

Multi-station integration

Continuous closed-loop transportation

Compatibility with automated equipment

Typical applications include:

Home appliance assembly

New energy battery manufacturing

3C electronics production

Medical device automation

Automotive component assembly

Precision manufacturing

About ZhenJi Automation

ZhenJi Automation specializes in the research, development, manufacturing, and customization of precision circular guide rail conveyor systems.

The company provides automation solutions for global manufacturers, supporting applications that require flexible layouts, stable transmission, and precision positioning.

With manufacturing experience, engineering capability, and production inventory support, ZhenJi Automation helps customers develop reliable automated production solutions from concept design to final implementation.
