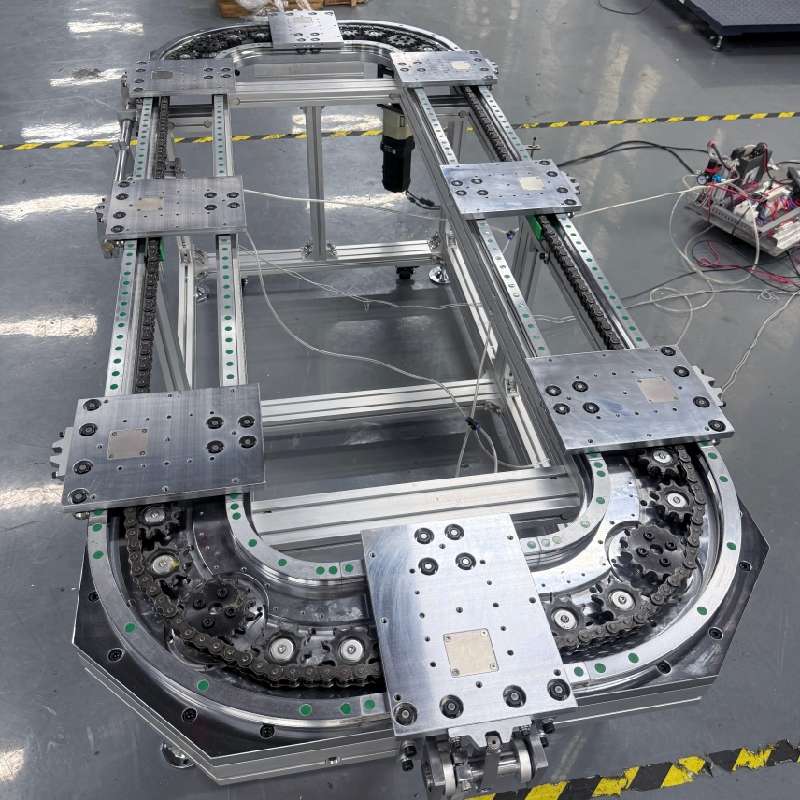

Circular Conveyor Precision Grades: Accuracy Classification and Application Guide

What Is Precision in a Circular Conveyor System?

In a circular conveyor system, precision refers to the ability of each carriage or pallet to repeatedly stop at the exact programmed position after every indexing cycle.

Unlike conventional belt conveyors that primarily transport products, precision circular conveyor systems are designed to synchronize with automated assembly, robotic operations, vision inspection, dispensing, laser marking, and precision testing processes.

Two parameters are commonly used to evaluate positioning performance:

· Repeatability

· Indexing positioning accuracy

Repeatability is generally considered the most important indicator because automated production relies on consistent positioning over thousands or even millions of production cycles.

How Does a Circular Conveyor Achieve High Precision?

High positioning accuracy is achieved through the integration of multiple precision mechanical components rather than relying on a single part.

Typical contributing factors include:

1. Precision Guide Rail Machining

The guide rail geometry directly affects carriage movement and long-term repeatability.

2. High-Accuracy Cam or Linear Drive System

Precision cams, linear motors, or servo-driven indexing mechanisms minimize positioning errors during acceleration and deceleration.

3. High-Rigidity Carriage Structure

Rigid sliding carriages reduce vibration and maintain stable positioning under load.

4. Servo Motion Control

Advanced servo controllers continuously monitor position feedback to improve indexing consistency.

5. Precision Manufacturing and Assembly

Component tolerances, assembly accuracy, bearing quality, and calibration all contribute to overall system precision.

Common Precision Grades of Circular Conveyor Systems

Although manufacturers may use different specifications, circular conveyor systems are generally categorized into three practical precision levels.

These values represent typical industry ranges and may vary depending on system design, payload, indexing speed, and manufacturer specifications.

Advantages of Selecting the Correct Precision Grade

Choosing an appropriate accuracy level offers several operational benefits.

Improved Cost Efficiency

Higher precision systems typically require tighter machining tolerances, more advanced drive systems, and additional calibration, resulting in higher equipment costs.

Selecting only the precision necessary for the process avoids unnecessary investment.

Better Production Stability

Matching conveyor accuracy to process requirements improves production consistency and reduces positioning errors.

Longer Equipment Life

Operating within the intended design tolerance minimizes excessive mechanical stress and helps maintain long-term repeatability.

Easier System Integration

Appropriate positioning accuracy simplifies integration with robots, vision systems, dispensing equipment, and automated assembly stations.

Limitations of Ultra-High Precision Systems

Although extremely precise systems offer excellent positioning performance, they are not always the optimal choice.

Potential limitations include:

· Higher equipment investment

· More demanding installation requirements

· Increased sensitivity to foundation flatness

· Greater maintenance precision

· Longer commissioning time

· Higher replacement component costs

For many production lines, medium-level precision provides the best balance between productivity and return on investment.

Typical Industry Applications

Different industries require different positioning capabilities.

Standard Precision

Suitable for:

· Packaging lines

· Product sorting

· Material conveying

· Food packaging

· Carton handling

High Precision

Widely used in:

· Automotive component assembly

· Consumer electronics production

· Lithium battery manufacturing

· Automated screw fastening

· Vision inspection systems

Ultra-High Precision

Common in:

· Semiconductor manufacturing

· Medical device assembly

· Optical component production

· Precision laser processing

· Microelectronics manufacturing

How to Select the Right Precision Grade

Before selecting a circular conveyor system, engineers should evaluate the following factors.

1. Product Tolerance Requirements

The conveyor repeatability should always exceed the required product assembly tolerance.

2. Process Type

Processes such as laser welding, precision dispensing, or semiconductor assembly generally require much higher positioning accuracy than material transfer applications.

3. Payload

Heavier loads may reduce achievable repeatability if the system is not properly designed.

4. Cycle Time

High-speed indexing combined with high precision requires more advanced drive technology.

5. Future Production Expansion

If additional automation stations or robots will be added later, selecting a slightly higher precision grade may simplify future upgrades.

Key Takeaways

Selecting the correct precision grade is not about choosing the highest specification but about matching conveyor performance to actual manufacturing requirements. Standard precision systems are well suited for material handling and packaging, while high-precision solutions support most automated assembly applications. Ultra-high precision systems are primarily intended for industries where micron-level positioning directly affects product quality.

By evaluating process tolerance, payload, cycle time, environmental conditions, and future production plans, manufacturers can select a circular conveyor system that delivers reliable performance, cost efficiency, and long-term operational stability.
