Circular Guide Rail Conveyor Line: Applicable Industries, Working Limits, and Non-Negotiable Selection Boundaries

Meta Description:

Learn Where a Circular Guide Rail Conveyor Line Delivers Maximum Value, Which Industries Benefit Most, And Which Working Conditions Exceed Its Mechanical Design Limits. Includes Precision Data, Environmental Requirements, And Selection Guidance For Global Automation Projects.

Opening Abstract

As Manufacturing Facilities Pursue Higher Throughput, Smaller Footprints, And Greater Positioning Accuracy, Traditional Belt-Based Loop Conveyors Increasingly Struggle To Meet The Requirements Of Precision Assembly And Synchronized Automation Processes.

The Circular Guide Rail Conveyor Line Has Emerged As a Specialized Solution For High-Precision Cyclic Transportation Applications, Particularly Where Repeatable Positioning And Compact Layouts Are Critical.

This Article Provides a Comprehensive Engineering Analysis Of Suitable Industries, Marginal Operating Environments, And Non-Modifiable Application Limits To Support Objective Equipment Selection Decisions In Global Manufacturing Projects.

1. Core Definition & Working Principle

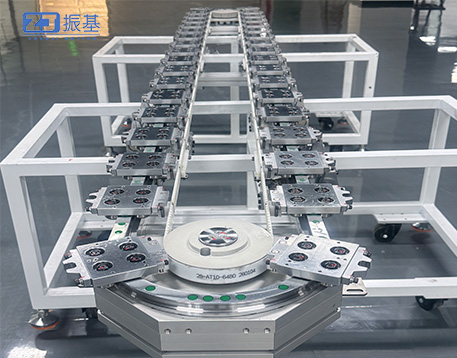

A Circular Guide Rail Conveyor Line Is a Precision Closed-Loop Transportation System That Moves Carriers Along a Hardened Circular Guide Rail Using Servo Or Linear Drive Technology.

Unlike Conventional Belt Loop Conveyors That Rely On Continuous Belt Motion And Friction Transmission, Circular Guide Rail Systems Use Precision-Guided Carriages Operating On Engineered Rail Profiles With Controlled Acceleration, Deceleration, And Positioning Functions.

Core Technical Characteristics

• Standard Payload Range Of 5–80 Kg Per Carrier

• Positioning Accuracy Up To ±0.05 MM

• Customized Heavy-Duty Configurations Available Up To 120 Kg

• Up To 35% Floor Space Reduction Compared With Equivalent Linear Transfer Layouts

• Independent Carrier Control Capability

• High Repeatability For Synchronized Automation Processes

Typical System Components

• Precision Circular Guide Rail

• Moving Carriers or Pallets

• Servo Drive or Linear Motor Drive Module

• Position Feedback System

• Central Motion Controller

• Safety and Guarding Systems Compliant With CE Standards

2. Best Applicable Industries

2.1 Consumer Electronics Assembly

Suitability Rating: ★★★★★

Typical Applications

• Smartphone Assembly

• Wearable Device Production

• Connector Assembly

• PCB Functional Testing

• Camera Module Manufacturing

Core Advantages

• Ultra-high Positioning Repeatability

• Compact Production Cells

• Fast Indexing Capability

• Easy Integration With Vision Inspection Systems

Standard Working Conditions

• Temperature: 15–35°C

• Relative Humidity: 30–70%

• Low Dust Environment

• ESD-Controlled Production Areas Preferred

2.2 Medical Device Manufacturing

Suitability Rating: ★★★★★

Typical Applications

• Syringe Assembly

• Diagnostic Cartridge Production

• Disposable Medical Consumables

• Surgical Instrument Assembly

Core Advantages

• Supports GMP-Compliant Production Layouts

• Suitable For Cleanroom Integration

• Stable Motion Reduces Contamination Risk

Standard Working Conditions

• ISO Cleanroom Environments

• FDA-Compliant Production Facilities

• Temperature: 18–26°C

• Controlled Airborne Particulate Levels

2.3 Automotive Electronic Components

Suitability Rating: ★★★★☆

Typical Applications

• Sensor Assembly

• ECU Production

• Battery Module Assembly

• Connector Manufacturing

Core Advantages

• High Takt Synchronization

• Integration With Robotic Workstations

• Supports Traceability Systems

Standard Working Conditions

• Temperature: 10–40°C

• Moderate Industrial Dust levels

• Controlled Vibration Environment

2.4 Semiconductor Back-End Packaging

Suitability Rating: ★★★★★

Typical Applications

• IC Packaging

• Optical Module Assembly

• Wafer Inspection Transfer

• Precision Test handling

Core Advantages

• Micron-Level Positioning Capability

• Excellent Repeatability

• Low Vibration Transport Characteristics

Standard Working Conditions

• Cleanroom Environment

• Strict Particle Control

• Temperature Stability Within ±2°C

2.5 Packaging and High-Speed Inspection Systems

Suitability Rating: ★★★★☆

Typical Applications

• Vision Inspection Loops

• Label Verification Stations

• Pharmaceutical Packaging

• Precision Sorting Systems

Core Advantages

• Continuous Cyclic Production Flow

• Compact Footprint

• High Throughput Capability

3. Marginal Working Conditions

These Applications Remain Technically Feasible But Generally Require Engineering Customization or Protective Upgrades.

3.1 Moderate Dust Environments

Limitations

Dust Accumulation Increases Rolling Resistance And Accelerates Guide Rail Wear.

Recommended Upgrades

• Sealed Bearing Carriers

• Positive Pressure Enclosures

• Scheduled Rail Cleaning Systems

3.2 Mild Corrosive Atmospheres

Limitations

Standard Carbon Steel Components May Experience Premature Corrosion.

Recommended Upgrades

• Stainless Steel Construction

• Nickel-Plated Components

• Corrosion-Resistant Surface Treatments

Applicable Examples Include:

• Food Processing Facilities

• Mild Chemical Packaging Plants

• Coastal Manufacturing Locations

3.3 Low Temperature Applications

Limitations

Lubricant Viscosity Increases Significantly Below Operating Design Temperatures.

Recommended Upgrades

• Low-Temperature Lubrication Systems

• Heated Enclosures

• Specialized Seal Materials

Typical Operational Threshold:

• Standard Systems: 5°C Minimum

• Customized Systems: Down to -20°C Depending On Configuration

3.4 Heavy Payload Applications

Limitations

Higher Payloads Increase Rail Stress And Reduce Dynamic Performance.

Recommended Upgrades

• Reinforced Carriage Structures

• Larger Guide Profiles

• Reduced Acceleration Parameters

Standard Load Range Remains:

• 5–80 Kg Per Carrier

Heavy-Duty Customization:

• Up to 120 Kg Per Carrier

4. Totally Inapplicable Working Conditions

The Following Conditions Represent Mechanical Red Lines Rather Than Customization Opportunities.

4.1 Bulk Material Transportation

Examples

• Ore

• Sand

• Aggregate

• Grain

• Coal

Mechanical Root Cause

Circular Guide Rail Conveyors Are Designed For Discrete Carrier Transport Rather Than Continuous Bulk Material Flow. Carrier Geometry And Drive Systems Are Incompatible With Loose Material Handling.

4.2 Severe Impact Loading

Examples

• Metal Forging Transfer

• Drop Loading Stations

• Press Discharge Operations

Mechanical Root Cause

Shock Loads Exceed The Design Limits Of Precision Bearings And Guide Raceways, Resulting In Rapid Degradation Of Positioning Accuracy.

4.3 Extreme High Temperature Environments

Typical Threshold

• Continuous Operation Above 80°C

• Radiant Heat Exposure Exceeding Component Specifications

Mechanical Root Cause

Thermal Expansion Affects Rail Geometry And Bearing Preload, Directly Reducing Positioning Precision.

4.4 Highly Corrosive Chemical Exposure

Examples

• Strong Acid Processing

• Chlorine Environments

• Concentrated Alkali Applications

Mechanical Root Cause

Corrosion Attacks Rolling Surfaces And Precision Interfaces That Cannot Be Fully Isolated Without Compromising System Functionality.

4.5 Explosive Dust and Hazardous Atmospheres Without Certified Protection

Examples

• Grain Dust Explosion Zones

• Solvent Vapor Environments

• ATEX Hazardous Areas

Mechanical Root Cause

Standard Systems Are Not Designed For Explosion-Proof Compliance Unless Specifically Engineered And Certified.

5. Industrial FAQ

Can a Circular Guide Rail Conveyor Line Replace a Belt Conveyor?

Not Universally. Circular Guide Rail Systems Are Optimized For Precision Positioning And Cyclic Transfer Operations, While Belt Conveyors Remain Superior For Long-Distance Continuous Transportation And Bulk Material Movement.

What Positioning Accuracy Can Realistically Be Achieved?

Well-Designed Systems Typically Achieve Positioning Accuracy Of ±0.05 Mm, Depending On Payload, Acceleration Profile, And Environmental Stability.

Is The System Suitable For Cleanroom Applications?

Yes. Circular Guide Rail Conveyor Systems Are Widely Deployed In Semiconductor, Medical, And Precision Electronics Manufacturing Environments Where Particulate Control Is Required.

What Is The Recommended Payload Range?

Most Industrial Applications Operate Within 5–80 Kg Per Carrier. Specialized Designs Can Support Payloads Up To 120 Kg, Although Dynamic Performance May Be Reduced.

How Much Floor Space Can Be Saved Compared With Linear Transfer Systems?

Circular Layouts Commonly Reduce Footprint Requirements By Approximately 35%, Especially In Multi-Station Assembly Processes With Repetitive Workflows.

Can The System Operate In Fda Or Gmp Production Environments?

Yes, Provided That Materials, Lubrication Systems, And Cleaning Procedures Comply With The Applicable Fda, Gmp, And Local Regulatory Requirements.

Does CE Compliance Apply To These Systems?

For Installations Within The European Market, Machinery Integration Typically Requires Compliance With Relevant Ce Directives Covering Machinery Safety, Electrical Systems, And Risk Assessment Procedures.

6. Conclusion & Platform Selection Guidance

The Circular Guide Rail Conveyor Line Occupies a Specialized Position Between Traditional Belt Transport Systems And High-End Precision Transfer Equipment.

Its Greatest Value Emerges In Manufacturing Environments Requiring Repeatable Positioning, Compact Layouts, Synchronized Automation, And High Production Density.

However, Precision Transport Technology Is Not Universally Applicable. Bulk Materials, Severe Impacts, Extreme Temperatures, And Highly Corrosive Environments Remain Non-Modifiable Mechanical Boundaries That Should Be Considered Early During Project Planning.

For Engineering Teams Evaluating Closed Loop Conveyor Architectures, The Selection Process Should Prioritize Working Conditions, Payload Requirements, Positioning Tolerance, Environmental Standards, And Lifecycle Maintenance Considerations Rather Than Transport Speed Alone.
