Why Cleanroom Conveyor Design Is Different from Standard Conveyor Systems

As semiconductor fabs, lithium battery plants, medical device manufacturers, and precision electronics facilities continue to increase automation, conveyor systems are no longer evaluated only by speed or payload.

Today's cleanroom production lines require equipment that minimizes airborne particle generation, reduces contamination risks, maintains positioning accuracy, and supports long-term stable operation.

A circular conveyor system used inside a cleanroom must therefore be engineered differently from a conventional industrial conveyor.

For manufacturers investing in automated assembly or inspection lines, understanding these engineering differences is essential before selecting a conveyor platform.

What Is a Cleanroom Circular Conveyor System?

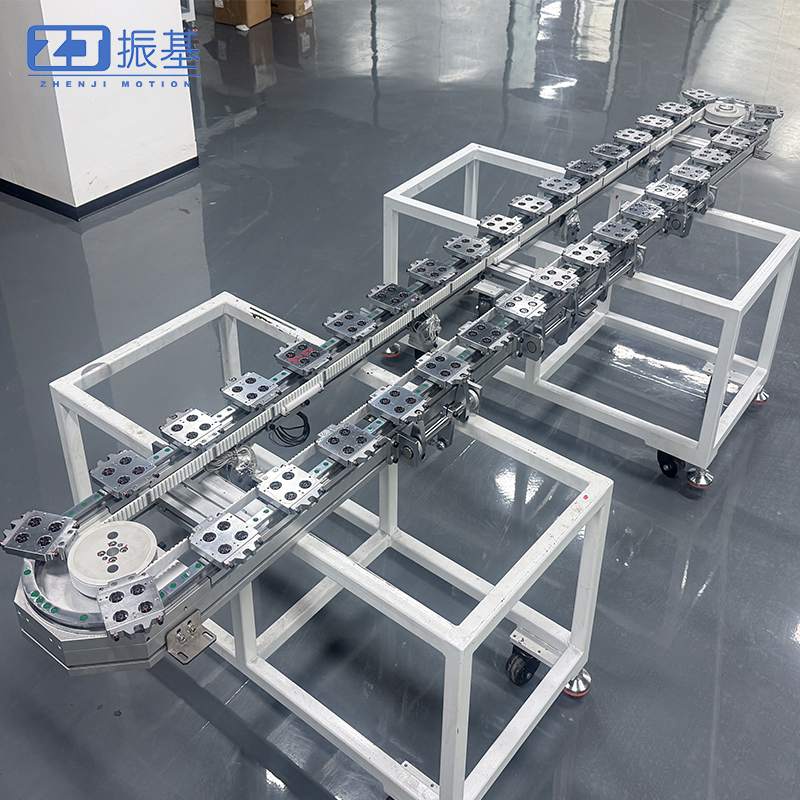

A cleanroom circular conveyor is a precision closed-loop conveying system specifically designed for contamination-controlled manufacturing environments.

Unlike conventional conveyors, these systems continuously transport workpiece carriers around a closed track while maintaining accurate positioning for multiple automated processes such as:

• Robotic assembly

• Vision inspection

• Laser processing

• Precision dispensing

• Leak testing

• Functional testing

• Automatic loading and unloading

Because the conveyor operates continuously inside controlled environments, every moving component must be designed to minimize contamination.

Why Standard Conveyor Systems Are Often Unsuitable for Cleanrooms

Many conventional conveyor systems were originally designed for general industrial production.

Inside an ISO-certified cleanroom, however, they may create unwanted contamination through:

• Mechanical wear particles

• Oil mist from lubricants

• Dust accumulation

• Static electricity

• Air turbulence

• Difficult-to-clean structural cavities

Even very small particles can negatively affect semiconductor wafers, battery cells, optical components, medical products, and precision electronic assemblies. ISO 14644 classifies cleanrooms according to airborne particle concentration, making contamination control a core design consideration rather than an afterthought.

Engineering Features of a Cleanroom Circular Conveyor

1. Low Particle Generation

The primary objective is reducing mechanical wear.

Manufacturers typically optimize:

• Guide rail geometry

• Rolling contact surfaces

• Precision-machined carriers

• Drive smoothness

• Bearing configuration

The result is significantly lower particle emission throughout long production cycles.

2. Cleanroom-Compatible Materials

Material selection directly influences contamination control.

Typical cleanroom-compatible materials include:

Smooth surfaces also simplify routine cleaning and maintenance.

3. Controlled Lubrication

Lubrication becomes a critical engineering consideration.

Poor lubricant selection may cause:

• Oil evaporation

• Oil mist

• Dust attraction

• Surface contamination

For cleanroom automation, manufacturers often select low-volatility lubricants, sealed lubrication points, or maintenance strategies that minimize contamination risks. Cleanroom standards also provide guidance for evaluating lubricants and other consumables used inside controlled environments.

4. Precision Positioning

Industries such as semiconductor manufacturing, lithium battery production, and optical assembly often require repeatable positioning accuracy.

Typical applications include:

• Camera module assembly

• Laser welding

• Battery cell inspection

• Vision alignment

• Precision dispensing

Stable indexing is often more important than maximum conveyor speed.

5. Easy-to-Clean Structural Design

Cleanroom equipment should avoid unnecessary particle traps.

Preferred design features include:

• Smooth external surfaces

• Minimal exposed fasteners

• Enclosed drive systems

• Sealed cable routing

• Accessible maintenance areas

These features simplify routine cleaning while reducing contamination risks.

Choosing the Right Drive System

Different drive technologies serve different production requirements.

Timing Belt Drive

Best suited for:

• Electronics assembly

• Inspection systems

• Light payload automation

Advantages:

• Quiet operation

• Smooth motion

• Lower maintenance

Chain Drive

Recommended for:

• Heavy payloads

• Long conveyor circuits

Requires:

• Better lubrication management

• Protective enclosure

• Regular maintenance

Direct Drive Indexing

Ideal for:

• Semiconductor manufacturing

• Optical assembly

• High-precision automation

Advantages:

• Fast response

• Excellent repeatability

• Minimal transmission backlash

Typical Industries Using Cleanroom Circular Conveyors

Semiconductor Manufacturing

Applications include:

• Wafer inspection

• Chip packaging

• Automated testing

• Precision handling

Lithium Battery Production

Widely used in:

• Cell inspection

• Module assembly

• Pack assembly

• Laser welding

• End-of-line testing

Medical Device Manufacturing

Suitable for:

• Disposable medical products

• Surgical devices

• Diagnostic equipment

• Sterile assembly processes

Precision Electronics

Applications include:

• PCB assembly

• Camera modules

• Sensors

• Consumer electronics

Five Factors to Consider Before Selecting a Cleanroom Conveyor

1. Required Cleanroom Classification

Confirm the required ISO 14644 cleanroom class before equipment selection.

2. Product Weight

Determine:

• Carrier payload

• Total moving mass

• Future expansion capacity

3. Positioning Accuracy

Define:

• Indexing repeatability

• Process tolerance

• Vision alignment requirements

4. Production Throughput

Consider:

• Cycle time

• Number of stations

• Conveyor speed

• Overall equipment efficiency

5. Serviceability

The best cleanroom conveyor should provide:

• Easy maintenance access

• Modular replacement

• Long service intervals

• Predictable maintenance costs

Frequently Asked Questions

Can a standard circular conveyor be used inside a cleanroom?

Not always.

Most standard conveyor systems are designed for general industrial environments and may not meet contamination-control requirements regarding particle generation, lubrication, or cleanability.

Does a cleanroom conveyor require certification?

The conveyor itself is not universally required to have a single certification, but many cleanroom projects evaluate equipment against applicable ISO 14644 requirements and customer validation procedures. Buyers should confirm project-specific cleanliness requirements before selecting equipment.

Which industries benefit most from cleanroom circular conveyors?

Typical applications include:

• Semiconductor manufacturing

• Lithium battery production

• Medical devices

• Precision electronics

• Optics

• Laboratory automation

About Huizhou Zhenji Automation Technology

Huizhou Zhenji Automation Technology specializes in the engineering and manufacturing of precision circular conveyor systems for industrial automation.

Its solutions are designed for industries requiring:

• High positioning accuracy

• Multi-station indexing

• Closed-loop material handling

• Flexible automation integration

• Customized production line layouts

The company's engineering team develops application-specific circular conveyor solutions for battery manufacturing, electronics assembly, intelligent manufacturing, and precision automation projects

Conclusion

Selecting a cleanroom circular conveyor involves much more than choosing a conveyor capable of moving products from one station to another.

Successful cleanroom automation depends on controlling particle generation, selecting appropriate materials, optimizing lubrication, maintaining positioning accuracy, and ensuring long-term equipment reliability.

As semiconductor, battery, medical, and precision manufacturing continue moving toward higher automation levels, cleanroom-compatible circular conveyor systems will remain a key enabling technology for next-generation production lines.
