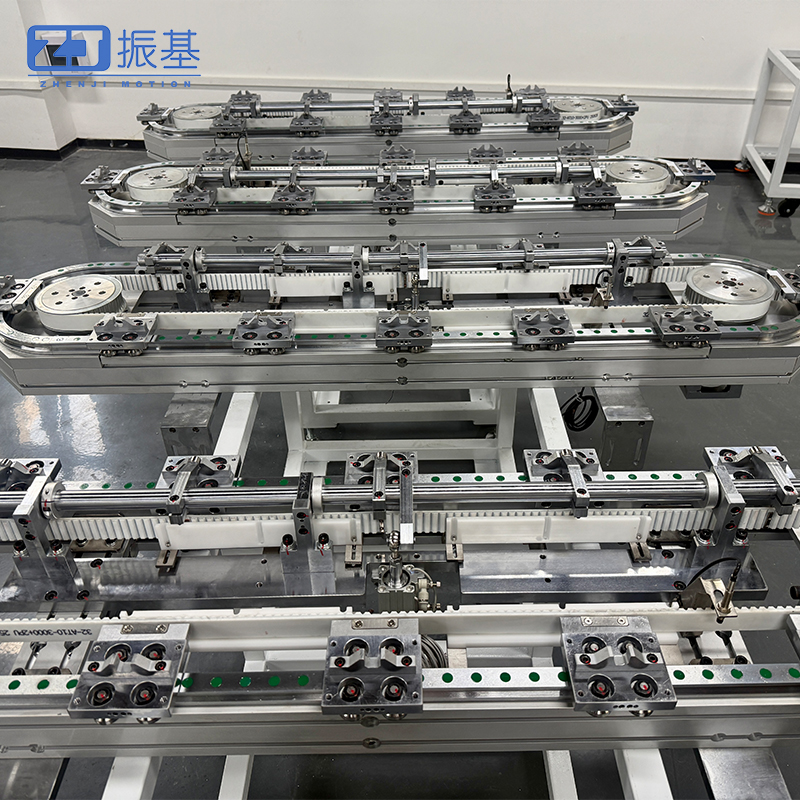

Comparison of the advantages and disadvantages of three transmission methods for ring guide rails

Comparison of Three Drive Systems for Circular Track Conveyor Systems: Independent Shuttle Drive vs. Chain Drive vs. Timing Belt Drive

1. Key Terminology

 The drive system is the core power transmission mechanism of a circular track conveyor, responsible for moving carriers continuously around the closed-loop guide track. Today's industrial market is primarily divided into three drive configurations, each offering different performance characteristics.

1.1 Independent Shuttle Drive

No intermediate transmission components are used. Each shuttle (carrier) is equipped with its own dedicated drive module, allowing independent acceleration, deceleration, stopping, and positioning. This architecture provides maximum flexibility and decentralized motion control.

 1.2 Chain Drive

 A motor drives industrial roller chains through sprockets. The shuttles are mechanically attached to the chain links, causing every carrier to move synchronously as a rigid system. This design is optimized for heavy-duty material handling.

 1.3 Synchronous Timing Belt Drive

 A toothed timing belt engages matching pulleys to move the carriers around the track. This solution combines quiet operation with reliable positioning and has become one of the most widely adopted drive methods for light- and medium-duty automated production lines.

The primary differences among these three drive technologies can be evaluated across five critical factors: Load capacity，Positioning accuracy，Operating noise，Maintenance requirements.

Application suitability

 These factors form the foundation of proper system selection.

2. Common Selection Challenges

Challenge 1

 Using a chain-driven conveyor in cleanroom environments introduces lubricant contamination and excessive noise, making compliance with clean manufacturing standards difficult.

 Challenge 2

 Applying a timing belt system to heavy-load applications may cause belt elongation, positioning drift, premature belt failure, and unexpected production downtime.

 Challenge 3

 Selecting mechanically linked drive systems for flexible production lines prevents independent carrier control, significantly reducing process adaptability.

 Challenge 4

 Focusing only on initial equipment cost while overlooking maintenance and lifecycle expenses can increase total ownership costs by more than 30%.

3. Drive Technologies: Operating Principles and Performance Characteristics

3.1 Independent Shuttle Drive (High-Precision Flexible Automation)

Operating Principle

 No chains, belts, or other mechanical transmission elements are used. Each shuttle incorporates an independent servo drive module, allowing completely autonomous motion without mechanical linkage to adjacent carriers.

Technical Specifications

Repeat positioning accuracy: ±0.01 to ±0.03 mm

Payload per shuttle: 5–50 kg

Maximum speed: 0.1–3.0 m/s

Operating noise: ≤55 dB

Advantages

Ultra-high positioning accuracy

Suitable for high-level cleanroom environments

Independent motion control for each workstation

Exceptional production flexibility

No mechanical transmission wear components

Very low maintenance requirements

Limitations

Higher initial equipment investment

More sophisticated motion control architecture

Less suitable for severe dust environments or high electromagnetic interference

Lower cost efficiency for very heavy payload applications

3.2 Chain Drive (Heavy-Duty Conveyor System)

Operating Principle

 An electric motor drives industrial roller chains through sprockets. Every shuttle is rigidly connected to the chain, forcing the entire conveyor loop to move synchronously.

 Technical Specifications

Repeat positioning accuracy: ±0.2 to ±0.5 mm

Payload per shuttle: 50–100 kg

Maximum speed: 0.05–1.5 m/s

Operating noise: 70–85 dB

Advantages

Excellent heavy-load carrying capacity

High resistance to mechanical shock

Performs well in high-temperature and dusty environments

Minimal elongation during long-distance conveying

Limitations

High operating noise

Not recommended for cleanroom production

Requires regular lubrication

Chain wear gradually reduces positioning accuracy over time

3.3 Synchronous Timing Belt Drive (General-Purpose Low-Noise Solution)

Operating Principle

 A toothed timing belt engages matching pulleys to drive all carriers simultaneously. This configuration has become a mainstream solution for automated mass production lines.

 Technical Specifications

Repeat positioning accuracy: ±0.05 to ±0.10 mm

Payload per shuttle: 10–50 kg

Maximum speed: 0.2–3.0 m/s

Operating noise: 58–65 dB

Advantages

Quiet operation

Oil-free transmission suitable for standard clean manufacturing environments

High conveying speed

Easy installation and commissioning

Excellent price-to-performance ratio

Limitations

Maximum operating temperature approximately 80°C

Susceptible to damage from sharp objects

Belt elongation may occur under prolonged heavy loading

Not recommended for heavy-duty conveying applications

4. Performance Comparison

Parameter Independent Shuttle Drive Chain Drive Timing Belt Drive

Repeat Positioning Accuracy ±0.01–0.03 mm ±0.2–0.5 mm ±0.05–0.10 mm

Payload per Shuttle 5–50 kg 50–100 kg 10–50 kg

Maximum Speed 3.0 m/s 1.5 m/s 3.0 m/s

Operating Noise ≤55 dB 70–85 dB 58–65 dB

Cleanroom Compatibility ISO Class 5–7 Not Recommended ISO Class 7–8

Initial Investment High Medium Low

Annual Maintenance Cost Very Low High Moderate

Production Flexibility Excellent (Independent Shuttle Control) Low (Fully Synchronized) Moderate (Zone-Based Control)

Typical Applications Semiconductor, Medical Device Assembly Automotive Components, Heavy Battery Modules Consumer Electronics Testing, Food & Consumer Goods Production

5. Typical Industrial Applications

Medical Device Assembly Line (Independent Shuttle Drive)

 An ISO Class 7 cleanroom required ±0.02 mm positioning accuracy with zero oil contamination. Independent shuttle control enabled adjustable cycle times at each workstation while reducing overall maintenance costs by approximately 40%.

 Heavy Lithium Battery Manufacturing Line (Chain Drive)

 A production line handling 100 kg battery modules operated continuously in a dusty industrial environment for over 20,000 hours without structural deformation. Noise levels were effectively managed using acoustic enclosures.

 Consumer Electronics Inspection Line (Timing Belt Drive)

 A production system transporting 15 kg workpieces achieved conveyor speeds up to 3 m/s while maintaining low operating noise. The total equipment investment was approximately 55% of an equivalent independent shuttle system, making it an economical solution for high-volume manufacturing.

6. Selection Best Practices

Avoid chain-driven conveyors in cleanroom environments, as lubricant contamination and noise may prevent compliance with cleanliness standards.

Do not use timing belt systems for payloads exceeding 120 kg, since prolonged heavy loading may lead to belt elongation and premature failure.

Avoid mechanically linked drive systems when independent station control is required, because chain and timing belt conveyors cannot independently control individual shuttles.

Use caution when selecting chain drives for high-speed applications, as vibration increases with speed and can reduce positioning accuracy.

Avoid independent shuttle drives for heavy-load applications, where the significantly higher investment often provides limited economic benefit compared to chain-driven systems.

7. Conclusion

No single drive technology is universally optimal for every circular track conveyor application. Successful system selection depends on matching the drive architecture to specific production requirements.

 Independent shuttle drive is best suited for high-precision, cleanroom, and flexible manufacturing environments.

Chain drive provides the greatest durability for heavy-duty, high-temperature, and dusty industrial applications.

Synchronous timing belt drive offers an excellent balance of speed, noise reduction, and cost, making it the preferred choice for many general-purpose automated production lines.

 A practical selection methodology is to evaluate the application in the following order:

 Required payload,Positioning accuracy,Cleanliness requirements,Production flexibility

 Following this approach helps minimize equipment failures, reduce maintenance costs, and improve long-term production reliability.
