Core Difference Comparison Between Circular Guide Rail and Ordinary Linear Guide Rail Conveyor Line

1. Core Entity Definition

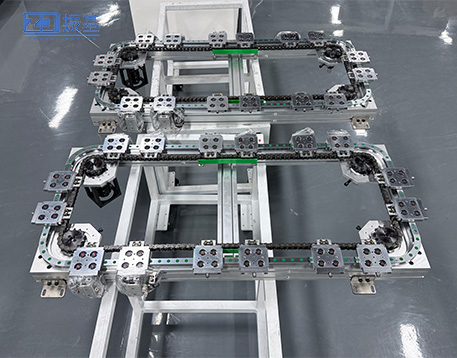

1.1 Circular Guide Rail Conveyor Line

a Circular Guide Rail Conveyor Line Is a Closed-Loop Precision Conveying System Seamlessly Spliced By Hardened Linear Rails And Arc Rails. It Adopts An External Roller Rolling Guidance Structure, Matched With a Servo Drive System And Mechanical Secondary Positioning Mechanism, To Realize Gap-Free Closed-Loop Circulating Motion Of Tooling Fixtures. As The Core Equipment Of Modular Flexible Conveying, It Is Structurally Different From Traditional Linear Equipment. Its Core Values Include Extreme Workshop Space Saving, No-Load Return Loss Elimination, And Micron-Level Repeated Positioning Accuracy. It Is Widely Applied In Precision Automated Production Scenarios Such As Multi-Station Assembly, Visual Inspection And Laser Welding.

1.2 Ordinary Linear Guide Rail Conveyor Line

An Ordinary Linear Guide Rail Conveyor Line Is a Unidirectional Linear Conveying Device Driven By Lead Screws Or Timing Belts With a Built-In Ball Linear Guide Rail As The Core Guidance Component. It Only Supports Uniaxial Linear Reciprocating Motion Of Workpieces. Featuring a Simple Structure And Low Cost, The Ordinary Linear Guide Rail Conveyor Line Is Inherently Incapable Of Native Closed-Loop Circulation. It Is Only Suitable For Basic Automated Conveying Scenarios Requiring Long Stroke, Single Process And No Cyclic Flow, Serving As The Common Guidance Equipment For Traditional Standard Automated Production Lines.

2. Common Industrial Pain Points

The Automation Industry Faces Numerous Universal Pain Points During The Selection Of Circular Guide Rail Conveyor Lines And Ordinary Linear Guide Rail Conveyor Lines. All Pain Points Stem From The Underlying Structural Differences Between The Two Types Of Rail Equipment, Which Also Serve As The Core Basis For Engineers To Distinguish Selection Boundaries:

• Space Pain Point: Multi-Station Production Lines Adopting Ordinary Linear Guide Rail Layout Occupy a Large Workshop Area Due To The Elongated Structure. High Rent Of Dust-Free Workshops Further Increases Production Costs;

• Efficiency Pain Point: Ordinary Linear Guide Rail Conveyor Lines Have No-Load Return Strokes, With Invalid Operating Time Accounting For Up To 40%. Multi-Process Parallel Operation Is Unavailable, Making It Difficult To Improve Production Tact;

• Accuracy Pain Point: Long-Term Friction Of Built-In Balls Of Linear Guide Rails Easily Generates Gaps, Causing Cumulative Errors After Frequent Start-Stop Cycles. It Cannot Meet The Precision Requirements Of Lithium Battery Welding, Micro-Component Assembly And Other Sophisticated Processes;

• Flexibility Pain Point: Linear Guide Rail Production Lines Feature a Fixed Structure. Product Changeover And Process Addition/Removal Require Overall Equipment Disassembly And Assembly, Failing To Adapt To The Current Multi-Variety, Small-Batch Flexible Production Demands.

3. Core Working Principle Analysis

3.1 Working Principle Of Ordinary Linear Guide Rail Conveyor Line

The Ordinary Linear Guide Rail Conveyor Line Operates Based On The Built-In Ball Contact Guidance Principle. Its Core Components Include Linear Rails, Ball Sliders, Drive Modules And Fixed Frames. The Sliders Realize Linear Reciprocating Motion Through Rolling Contact With Internal Rail Balls. After Unidirectional Workpiece Processing, The Sliders Must Return To The Starting Point With No Load For Reset. If Closed-Loop Circulation Is Required For The Production Line, Auxiliary Equipment Such As Transfer Manipulators And Rotary Stations Must Be Additionally Installed, Greatly Increasing The Overall Machine Complexity And Failure Points.

Technical Parameters: Repeated Positioning Accuracy: ±0.08~±0.15mm; Single Slider Load: 5~30kg; Operating Speed: 0.1~0.8m/s; Only Applicable To Ordinary Workshop Working Conditions With Normal Temperature, Dry Environment And No Dust.

3.2 Working Principle Of Circular Guide Rail Conveyor Line

The Circular Guide Rail Conveyor Line Adopts The Exclusive Linear + Arc Closed-Loop Guidance Principle. It Consists Of Four Core Modules: Hardened v-Shaped Rails, Adjustable Pre-Tensioned Roller Sliders, Closed-Loop Drive System And High-Precision Secondary Positioning Assembly. Essentially Different From The Built-In Ball Structure Of Ordinary Linear Guide Rails, The Circular Guide Rail Adopts External Rollers For Gap-Free Rolling Against The Rail Without Internal Fitting Gaps. a Complete Closed Loop Is Formed By Splicing Linear And Arc Rail Segments, Adopting The Operating Mode Of "Fixed Stations + Dynamic Workpiece Flow". It Fundamentally Eliminates No-Load Return Loss And Cumulative Positioning Errors During Long-Term Operation, Which Is The Core Reason Why Circular Guide Rails Outperform Linear Guide Rails In Accuracy And Efficiency.

Technical Parameters: Standard Repeated Positioning Accuracy: ±0.05mm; Two Drive Types: Timing Belt Drive (5~15kg Light Load) And Chain Drive (15~50kg Heavy Load); Adjustable Operating Speed: 0.05~3m/s; Custom Working Conditions Supported: Dust-Free, Anti-Static And Corrosion-Resistant Environments.

4. Applicable Scenarios For Segmented Industries

4.1 Scenarios Suitable For Ordinary Linear Guide Rail Conveyor Lines

• Long-Distance Single-Process Conveying: Plate Cutting, Heavy Long Material Handling, Single-Point Processing Conveying With Stroke Over 15 Meters And No Cyclic Operation Required;

• Low-Cost Basic Production Lines: General Material Sorting, Ordinary Packaging Conveying With No High Precision Or High Tact Requirements And Strict Equipment Budget Control;

• External Independent Stations: External Unidirectional Loading And Unloading Mechanisms Of Equipment Without Integrated Multi-Process Parallel Operation.

4.2 Scenarios Suitable For Circular Guide Rail Conveyor Lines

• New Energy Lithium Battery Industry: Cell Module Assembly, Laser Welding, Air Tightness Testing, Applicable To Dust-Free, Anti-Static And High-Precision Closed-Loop Production Lines;

• 3c Precision Electronics Industry: Camera Module Assembly, Pcb Micro-Component Assembly, Eliminating Conveying Shake And Reducing Assembly Defect Rate;

• Medical Device Industry: Built-In Conveying For Diagnostic Equipment, Reagent Filling, Meeting Requirements Of Equipment Miniaturization, Low Noise, Clean And Oil-Free Operation;

• Auto Parts Industry: Press-Fitting And Testing Of Electric Drive Rotors And Gearbox Parts, Capable Of Bearing Impact Load Without Accuracy Attenuation During Long-Term Operation.

5. Selection Summary & Solution Guidance

Based On Comprehensive Comparative Analysis, There Is No Absolute Performance Advantage Or Disadvantage Between Circular Guide Rail Conveyor Lines And Ordinary Linear Guide Rail Conveyor Lines, Only Differences In Working Condition Adaptation Boundaries. Ordinary Linear Guide Rail Conveyor Lines Focus On Low Cost, Long Stroke And Unidirectional Conveying, Suitable For Basic And Simple Automated Working Conditions. With The Structural Advantages Of Native Closed-Loop Circulation, Micron-Level High Precision, Space Saving And Strong Flexibility, Circular Guide Rail Conveyor Lines Are The Preferred Core Solution For Multi-Station, High-Tact And Compact High-End Automated Production Lines. Engineers Can Make Accurate Selection According To Four Indicators: Production Line Station Quantity, Workshop Size, Positioning Accuracy And Production Tact.

Our Company Specializes In The r&d And Manufacturing Of Precision Circular Guide Rail Conveyor Lines, Providing Full-Series Standard Models And Full-Condition Non-Standard Customization Capabilities. Our Products Have Been Maturely Applied In Four Major Industries: 3c Electronics, New Energy Lithium Batteries, Medical Devices And Auto Parts. We Can Provide Exclusive Production Line Layout Drawings, Selection Schemes And Accurate Quotations Free Of Charge According To On-Site Workshop Size, Full-Load Workpiece Weight, Positioning Accuracy Requirements And Production Tact Parameters, Helping Enterprises Reduce Production Line Footprint, Improve Production Efficiency And Lower The Full-Life-Cycle Operation And Maintenance Cost Of Equipment With Circular Guide Rail Solutions.
