Dual-Layer S-Shaped Circular Track - In-House R&D & Assembly

Project Background

As automated manufacturing moves toward higher flexibility and tighter workstation layouts, conventional linear conveying can become difficult to adapt to multi-station processes. This project uses a Dual-Layer S-Shaped Circular Track developed through in-house R&D and assembly to create a compact circulation route for automated production equipment. The system is designed around the concept of a circular guide rail, allowing carriers or fixtures to move through multiple process positions while using vertical space and a non-linear layout.

For equipment engineers, the project required more than simply connecting standard rail sections. The track geometry, two-layer arrangement, carrier movement, drive coordination, installation structure, and interface with upstream and downstream equipment all had to work as one integrated transport module. The objective was to achieve stable circulation while keeping the overall footprint and station arrangement practical.

This type of project is relevant to manufacturers looking for a custom circular guide rail conveyor system, precision circular guide rail, or circular guide rail automation solution rather than a standard conveyor with limited layout flexibility.

Technical Challenges

The first challenge was the S-shaped trajectory. Unlike a simple circular or rectangular loop, an S-shaped path contains changes in direction and elevation that require careful coordination between track geometry, carrier movement, and structural support. Small alignment errors can accumulate during continuous circulation and affect positioning at process stations.

The second challenge was the dual-layer configuration. Two transport levels need to maintain a controlled relationship while allowing carriers to transfer or circulate between sections without interference. The design, therefore, had to consider vertical clearance, fixture dimensions, maintenance access, drive arrangement, and the connection between the upper and lower paths.

The third challenge was integration. A circular guide rail automation line is normally part of a larger automated system. Sensors, fixtures, assembly stations, inspection units, loading and unloading mechanisms, and control signals must be coordinated with the transport cycle. The transport module must therefore be designed around the process requirements instead of being treated as an isolated conveyor.

Key project parameters can be completed according to the final engineering specification:

Solution

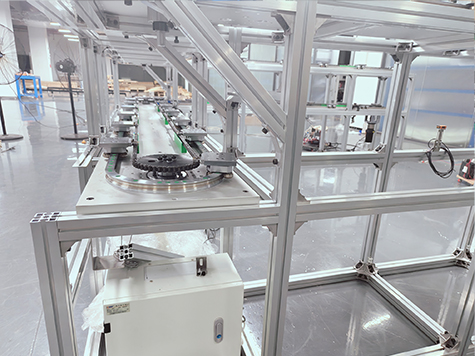

The solution combines customized circular guide rail design, dual-layer track planning, precision assembly, and system-level commissioning. The S-shaped route was developed according to the required workstation positions, available installation area, carrier dimensions, and process sequence. Instead of forcing the production process into a standard track, the track layout was configured around the customer's equipment interface.

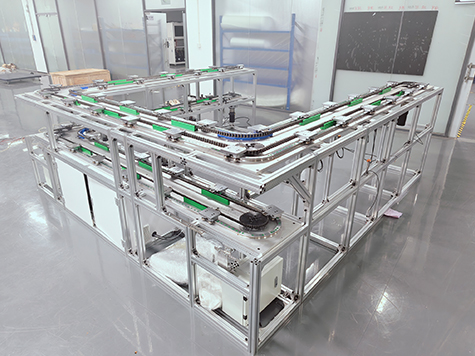

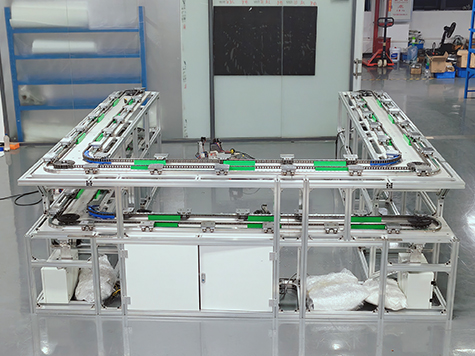

The dual-layer structure provides a way to arrange process stations on different levels within a compact area. This can be particularly useful when floor space is restricted or when the process requires a return route without extending the production line horizontally. The guide rail and support structure are assembled and checked as a complete system to reduce alignment variation between individual sections.

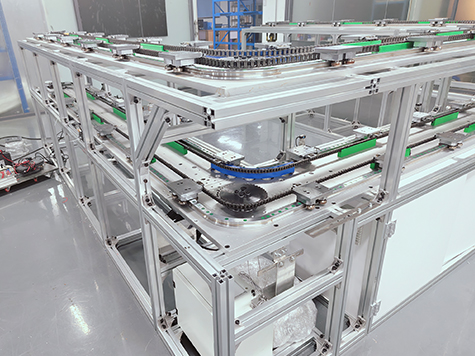

Drive selection is matched to the actual application. Depending on load, speed, positioning, and operating requirements, the system can be configured with suitable chain drive, timing belt drive, or synchronous belt arrangements. Fixtures and carriers can also be customized to suit the workpiece and process equipment.

This approach makes the system suitable for applications described by search terms such as circular guide rail conveyor manufacturer, custom precision conveyor system, circular track conveyor, closed loop conveyor system, and precision positioning conveyor system. The key principle is that the conveyor is engineered as a precision transport module within an automated production line.

Implementation Results

After engineering design, manufacturing, assembly, and commissioning, the project provides a defined circulation route for the connected production stations. The S-shaped dual-layer layout helps organize the transport path within a constrained equipment footprint while maintaining access to multiple process positions.

The final performance data should be completed from the project's acceptance records:

Repeat positioning accuracy: ±0.05 mm

Running speed: 0-3 m/s

Maximum payload: 0-100 kg

Cycle time: 5-20s

Number of circulating carriers: 50

Continuous operating time: 24 h

The practical value of the project is not limited to conveying workpieces. A properly configured circular guide rail system can help synchronize workstations, reduce unnecessary transfer operations, and provide a more flexible foundation for automated assembly, inspection, testing, and processing. For manufacturers evaluating a circular guide rail for automated assembly, the most important step is to match the rail geometry and performance specifications to the complete production cycle.

Frequently Asked Questions

1. Why use a dual-layer S-shaped circular track instead of a conventional linear conveyor?

A dual-layer S-shaped layout can be considered when multiple stations must be connected within a restricted footprint or when the process requires a return route at a different level. Compared with a simple linear conveyor, the closed-loop arrangement can support continuous circulation and more flexible workstation planning. The correct choice depends on carrier load, accuracy, speed, available space, and station sequence.

2. What information should buyers provide when requesting a custom circular guide rail system?

A useful RFQ should include workpiece dimensions and weight, fixture requirements, required positioning accuracy, target speed or cycle time, number and spacing of stations, available installation area, transport direction, installation orientation, and interface requirements with existing equipment. Providing these details allows the supplier to evaluate the appropriate circular guide rail structure and drive configuration more accurately.

Consultation

A customized circular guide rail project should begin with engineering requirements rather than a fixed product model. Zhenji Motion provides in-house R&D, manufacturing, assembly, and commissioning for customized circular guide rail transport modules, including complex closed-loop layouts such as dual-layer and S-shaped configurations.

If you are planning a precision assembly, inspection, testing, or automated handling project, send the track dimensions, workpiece information, layout drawing, and process requirements for technical evaluation.
