Why Are Circular Guide Rail Conveyors Becoming Common in Smartphone Camera Assembly?

Modern smartphone camera modules are becoming smaller, more complex, and more precise with every product generation. Multiple lenses, autofocus mechanisms, miniature sensors, and flexible circuit boards require assembly processes with extremely consistent positioning and repeatable motion.

In many production facilities, the conveyor is no longer just a transportation device. It has become an integral part of the manufacturing process, responsible for synchronizing workstations, maintaining cycle time, and ensuring positioning accuracy throughout the assembly line.

For this reason, many electronics manufacturers are replacing traditional linear conveyors with circular guide rail conveyor systems, particularly in high-volume camera module production.

The Manufacturing Challenge

A consumer electronics manufacturer planned to increase the output of an existing smartphone camera module production line without expanding the factory footprint.

The original production layout used a conventional linear transfer system. Although it successfully moved products between stations, it created several production bottlenecks:

• Waiting time between independent workstations reduced equipment utilization.

• Manual product transfers introduced unnecessary handling.

• The long linear layout occupied valuable floor space.

• Cycle time fluctuated because each station operated independently rather than as a synchronized system.

Instead of increasing line speed alone, the engineering team focused on improving production flow.

The Engineering Solution

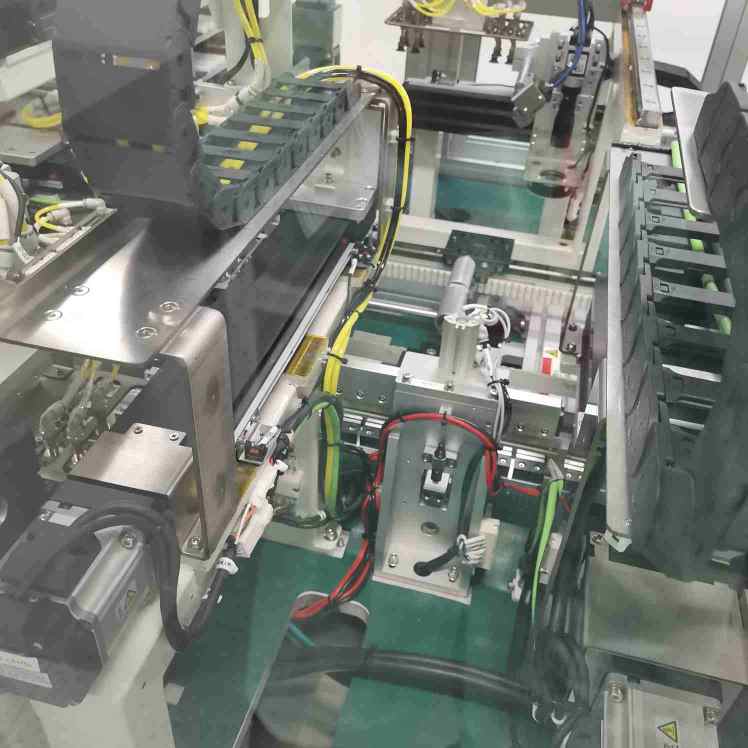

The production line was redesigned around a circular guide rail conveyor system that connected multiple assembly stations into one continuous loop.

Each camera module was mounted on a dedicated fixture attached to a moving carriage. As the carriage traveled around the closed-loop guide rail, it stopped automatically at each workstation for assembly, dispensing, inspection, testing, or final unloading.

Because every workstation shared the same indexed motion platform, product transfer became predictable and synchronized throughout the manufacturing process.

Rather than treating conveying and positioning as two independent functions, the new system combined both into a single precision transport platform.

Production Workflow

The circular guide rail conveyor supported the complete manufacturing sequence, including:

• Automatic loading

• Lens assembly

• Adhesive dispensing

• UV curing

• Autofocus calibration

• AOI visual inspection

• Electrical testing

• Final unloading

Each station operated according to a predefined cycle time, allowing products to move continuously without unnecessary buffering or repeated manual repositioning.

This simplified material flow while improving production consistency.

Measured Production Improvements

After installation and production validation, several measurable improvements were observed during continuous operation.

The most significant change was not maximum conveyor speed but production stability. Because every station operated within the same indexed cycle, waiting time between processes was significantly reduced.

Depending on product configuration and process complexity, overall production throughput typically improved by approximately 20% to 35% compared with the previous transfer method.

Automatic circulation also reduced manual handling requirements. In many assembly cells, one to three operator positions previously assigned to product transfer could be reallocated to quality inspection or equipment supervision.

Another noticeable benefit was the production layout itself. The circular configuration required less floor space than an equivalent straight conveyor line while maintaining the same number of process stations, making it easier to integrate additional automation equipment in future production upgrades.

Why Circular Guide Rail Systems Work Well for Camera Modules

Smartphone camera modules are among the most demanding products in consumer electronics manufacturing. Lens alignment, adhesive dispensing, autofocus calibration, and optical inspection all require repeatable positioning throughout the assembly process.

Unlike conventional belt conveyors, a circular guide rail conveyor is designed to provide both continuous transport and indexed positioning within the same mechanical platform.

This combination allows automation equipment such as robotic arms, vision inspection systems, dispensing units, and precision assembly stations to work with consistent product positioning, reducing cumulative positioning errors across the production line.

Engineering Considerations Before Selecting a Circular Guide Rail Conveyor

When designing an assembly line for miniature electronic components, conveyor speed is only one factor.

Manufacturing engineers should also evaluate:

• Required positioning repeatability for each assembly process.

• Fixture weight and total payload.

• Where Else Is This Technology Used?

• Although smartphone camera modules represent a common application, circular guide rail conveyor systems are widely adopted across precision manufacturing industries, including:

• Consumer electronics assembly

• Wearable device manufacturing

• Connector assembly

• Medical device production

• Semiconductor auxiliary equipment

• Precision optical component assembly

• Any manufacturing process requiring continuous indexing, synchronized workstations, and repeatable positioning can benefit from this type of transport system.

• Target production cycle time.

• Future expansion requirements.

• Cleanroom compatibility and maintenance accessibility.

• Integration with robotics, machine vision, and testing equipment.

Selecting a conveyor based solely on speed often leads to bottlenecks elsewhere in the manufacturing process. A balanced system design generally produces higher long-term productivity than simply increasing transport velocity.

Conclusion

For manufacturers seeking higher throughput without expanding production space, improving material flow is often more effective than simply increasing machine speed.

A circular guide rail conveyor provides a practical solution by combining transportation, indexing, and positioning into one integrated platform. In smartphone camera assembly lines, this approach helps stabilize production, reduce manual intervention, improve equipment utilization, and create a more scalable automation architecture.

As consumer electronics continue to demand higher precision and shorter production cycles, circular guide rail conveyor systems are expected to play an increasingly important role in next-generation automated assembly lines.
