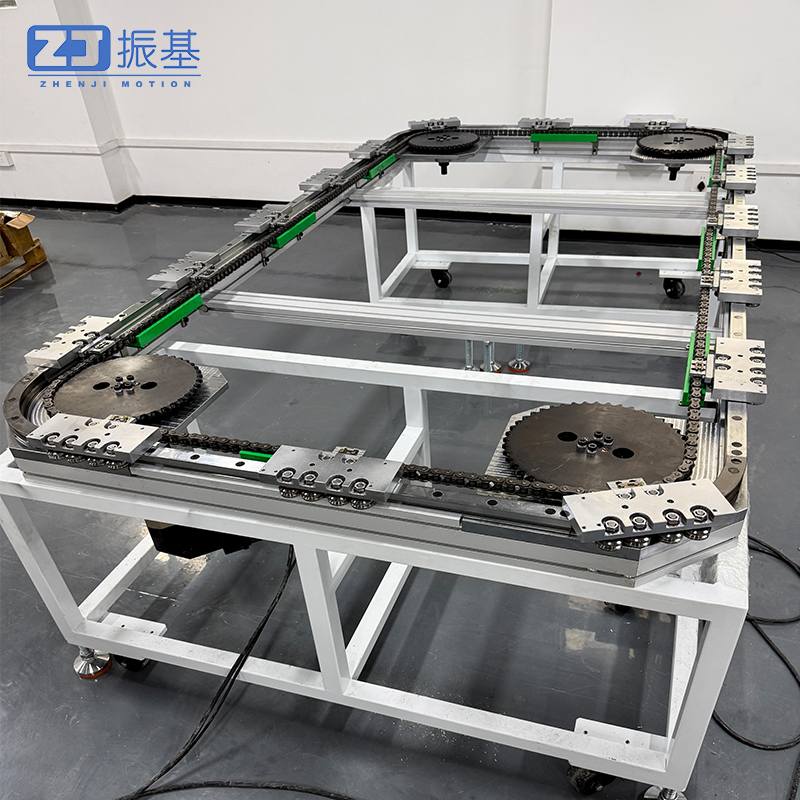

How Much Does a Circular Conveyor System Cost?

8 Factors That Determine the Final Price

How Much Should You Budget for a Circular Conveyor System?

One of the first questions engineers and purchasing teams ask when planning an automation project is straightforward:

"How much does a circular conveyor system cost?"

The short answer is that there is no universal price.

Unlike standard belt conveyors, circular conveyor systems are engineered to match a specific production process. Every project has different requirements for indexing accuracy, payload, conveyor dimensions, cycle time, servo control, and tooling integration. These technical variables have a much greater impact on cost than the conveyor itself.

For this reason, two systems that appear similar may differ significantly in price because they are designed to solve different manufacturing challenges.

For budgeting purposes, however, there are typical investment ranges that can help estimate an automation project during the early planning stage.

Typical Circular Conveyor System Price Range

Although every project is customized, most industrial applications fall within the following budget ranges.

These figures are intended only as preliminary budgeting references. Final pricing depends on the overall mechanical design, control architecture, production requirements, and system integration scope.

What Has the Greatest Impact on the Price?

The overall cost of a circular conveyor system is determined by several engineering decisions rather than a single component. The following factors typically have the largest influence on the final quotation.

1. Conveyor Size and Track Length

The physical size of the conveyor is usually the primary cost driver.

A larger track requires more guide rail sections, support structures, precision machining, and installation work. Longer conveyors also demand tighter alignment during assembly to maintain positioning accuracy throughout the entire loop.

As conveyor dimensions increase, both manufacturing complexity and installation time increase accordingly.

2. Number of Workstations

Every additional workstation requires more than simply adding another carrier.

Additional stations often require extra fixtures, sensors, pneumatic devices, electrical wiring, and PLC programming. As a result, increasing the number of stations affects both mechanical manufacturing and control system complexity.

For high-throughput production lines, workstation count can become one of the largest contributors to the overall project cost.

3. Payload Capacity

Payload directly influences the structural design of the conveyor.

Light-duty applications, such as electronic assembly, generally require compact carriers and smaller drive systems. Heavy-duty applications handling automotive components or industrial products require stronger guide rails, reinforced frames, larger bearings, and higher-torque servo motors.

Higher payload capacity almost always leads to increased material costs and more demanding engineering requirements.

4. Positioning Accuracy

Positioning accuracy is one of the most important specifications in precision automation.

Applications such as semiconductor manufacturing, medical device assembly, and precision electronics often require repeatability far beyond that of conventional conveyor systems.

Achieving higher positioning accuracy requires tighter machining tolerances, precision assembly, servo tuning, and comprehensive system calibration, all of which increase manufacturing cost.

5. Required Throughput and Cycle Time

Many buyers focus on conveyor speed, but production throughput is often the more important performance indicator.

A system designed for short cycle times must accelerate and decelerate rapidly while maintaining stable positioning over thousands of operating cycles every day.

Higher throughput typically requires premium servo motors, advanced motion controllers, optimized mechanical design, and sophisticated control software.

6. Motion Control Architecture

The control platform has a significant influence on both system capability and project cost.

Basic automation projects may only require a standard PLC, while advanced production lines often integrate servo motion control, EtherCAT communication, vision inspection, robotic interfaces, MES connectivity, and production data collection.

As system functionality increases, so does the complexity of engineering, programming, commissioning, and long-term maintenance.

7. Drive Technology

Circular conveyor systems are commonly available with synchronous belt drives, chain drives, or precision mechanical drive systems.

Each solution offers different advantages depending on the application.

Synchronous belt systems provide smooth operation and relatively low maintenance.

Chain-driven systems are preferred for higher payload applications where durability is a priority.

Precision drive mechanisms are commonly selected when maximum positioning accuracy and repeatability are required.

Selecting the appropriate drive technology should be based on production requirements rather than initial purchase price alone.

8. Customization and System Integration

No two automation projects are exactly alike.

Additional requirements such as cleanroom compatibility, stainless steel construction, ESD protection, machine vision integration, robotic loading, safety guarding, or custom tooling can significantly influence the overall project cost.

In many cases, the conveyor itself represents only one part of a complete automated manufacturing solution.

Why Do Quotes Vary So Much?

It is common for buyers to receive quotations that differ substantially, even when the systems appear similar.

The difference often lies in engineering quality rather than the visible hardware.

Factors such as guide rail precision, bearing quality, servo brand, motion control performance, assembly tolerances, and factory acceptance testing all influence long-term reliability.

A lower purchase price may reduce the initial investment, but unexpected downtime, maintenance, or reduced production efficiency can result in higher operating costs over the lifetime of the equipment.

Look Beyond the Purchase Price

When comparing suppliers, experienced engineering teams evaluate much more than the quotation itself.

Key considerations include:

• Positioning accuracy and repeatability

• Expected equipment lifetime

• Spare parts availability

• Ease of maintenance

• Future expansion capability

• Motion control performance

• Technical support and after-sales service

Evaluating the Total Cost of Ownership (TCO) often provides a more accurate picture of long-term value than comparing purchase prices alone.

Information Needed for an Accurate Quotation

To prepare a realistic quotation, suppliers typically require the following project information:

• Product dimensions and weight

• Required production throughput

• Number of workstations

• Positioning accuracy requirements

• Operating environment

• Required control platform

• Integration with robots, vision systems, or other automation equipment

Providing complete technical information early in the project allows suppliers to recommend the most suitable conveyor configuration while avoiding unnecessary costs.

Conclusion

There is no standard price for a circular conveyor system because every solution is engineered around a specific manufacturing process.

Track dimensions, workstation quantity, payload, positioning accuracy, throughput, drive technology, control architecture, and system customization all contribute to the final investment.

For most manufacturers, the objective should not be finding the lowest quotation, but selecting a conveyor system that delivers stable performance, reliable operation, and the lowest total cost of ownership throughout its service life.
