How to Select a Circular Guide Rail Conveyor for Lithium Battery Production Lines: 10 Engineering Considerations

Quick Answer

A circular guide rail conveyor should be selected based on production requirements rather than maximum specifications. Engineers should evaluate repeatability, payload, cycle time, guide rail rigidity, drive technology, environmental conditions, automation compatibility, maintenance requirements, scalability, and proven application experience before making a final decision.

For lithium battery manufacturing, the most reliable solution is not necessarily the fastest or the most precise—it is the system that consistently meets the process requirements throughout the equipment lifecycle.

Why Conveyor Selection Matters in Lithium Battery Manufacturing

Lithium battery production has become one of the most demanding automation sectors.

Modern production lines integrate dozens of synchronized processes, including:

• Cell assembly

• Laser welding

• Electrolyte filling

• Vision inspection

• Module assembly

• End-of-line testing

Every station depends on accurate product positioning and predictable transfer timing. Even small positioning deviations can affect welding quality, inspection accuracy, or robotic pick-and-place performance.

Because of these requirements, many equipment builders are replacing conventional belt conveyors with precision circular guide rail conveyor systems for multi-station automation.

What Is a Circular Guide Rail Conveyor?

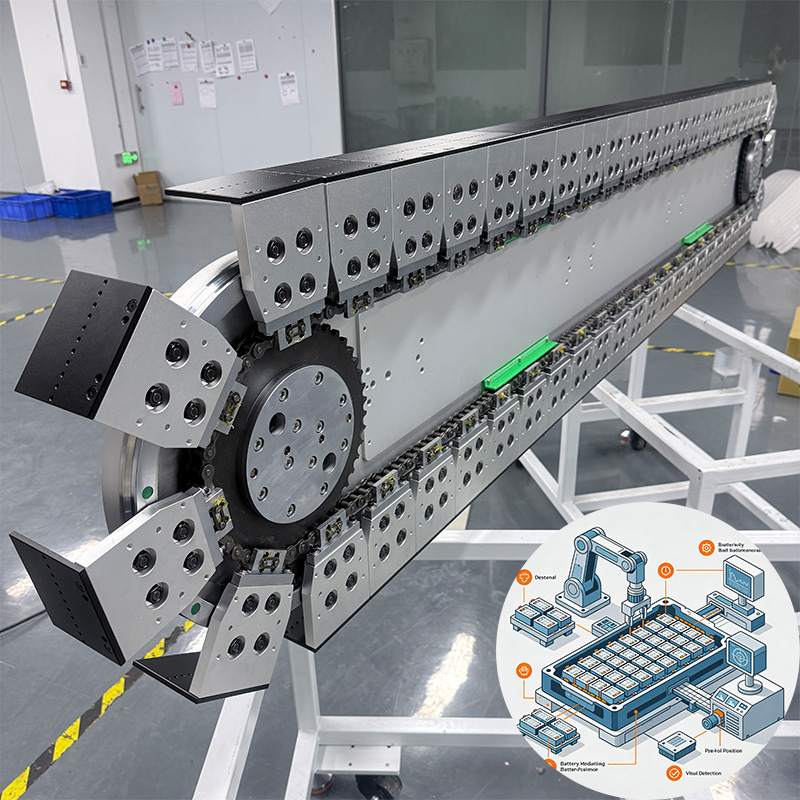

A circular guide rail conveyor is a closed-loop precision transfer system designed to move workpiece carriers repeatedly between multiple processing stations.

Unlike conventional conveyor belts that primarily transport products from one location to another, a circular guide rail system combines transportation and precision positioning within a single platform.

Typical components include:

This architecture makes circular guide rail conveyors suitable for automated assembly lines where positioning accuracy is as important as transportation efficiency.

Ten Engineering Considerations Before Selecting a Circular Guide Rail Conveyor

1. Start with the Production Process, Not Conveyor Speed

One of the most common misconceptions is assuming that higher conveyor speed automatically increases productivity.

In practice, production output is determined by cycle time, which includes:

• Processing time

• Robot handling time

• Inspection time

• Indexing time

A conveyor capable of extremely high speed provides little benefit if downstream equipment determines the production rhythm.

Engineering recommendation

Calculate the complete production cycle before selecting conveyor speed.

2. Evaluate Dynamic Payload Instead of Static Weight

Many projects calculate only product weight.

However, conveyor sizing should include:

• Product

• Fixture

• Pallet

• Carrier

• Dynamic acceleration forces

Ignoring dynamic loading can reduce bearing life and positioning accuracy over time.

3. Match Positioning Accuracy to Process Requirements

Higher accuracy is not always necessary.

Typical requirements differ by application:

Selecting excessive precision increases equipment cost without necessarily improving production quality.

4. Consider Structural Rigidity for Continuous Operation

Lithium battery production often operates around the clock.

Long-term stability depends on:

• Rail stiffness

• Bearing quality

• Structural support

• Manufacturing tolerances

Insufficient rigidity may gradually increase vibration and positioning deviation during continuous operation.

5. Select the Appropriate Drive Technology

Different drive systems provide different advantages.

The best choice depends on process priorities rather than specifications alone.

6. Account for Battery Manufacturing Environment

Battery production environments may expose equipment to:

• Fine dust

• Adhesive contamination

• Temperature variation

• Humidity fluctuations

Conveyor systems should therefore be evaluated for:

• Protective design

• Lubrication strategy

• Cleaning accessibility

• Maintenance intervals

Environmental compatibility directly affects long-term reliability.

7. Verify Automation Integration Capability

Modern production lines rarely operate as standalone conveyor systems.

Typical integration includes:

• SCARA robots

• Six-axis robots

• Machine vision

• Laser processing

• PLC and motion control

The conveyor should provide stable positioning and synchronized communication with upstream and downstream automation equipment.

8. Plan for Future Product Changes

Battery technology evolves rapidly.

Future production may involve:

• New cell formats

• Larger battery modules

• Additional inspection stations

Selecting a modular conveyor platform helps reduce future redesign costs.

9. Evaluate Total Cost of Ownership

Initial purchase price represents only part of the investment.

Lifecycle considerations include:

• Maintenance frequency

• Spare parts availability

• Lubrication requirements

• Downtime risk

• Service accessibility

For high-volume production, operating cost often exceeds initial equipment cost during the system lifetime.

10. Review Proven Industrial Applications

Engineering specifications should be supported by practical operating experience.

When evaluating a conveyor solution, consider whether similar systems have already been used in:

• Battery cell assembly

• Module production

• Automated inspection

• High-speed robotic assembly

Field-proven performance reduces implementation risk.

Recommended Selection Workflow

Rather than comparing equipment specifications directly, engineers can follow a structured evaluation process:

1. Define product dimensions and payload.

2. Calculate production cycle time.

3. Determine positioning accuracy requirements.

4. Evaluate environmental conditions.

5. Select the appropriate drive mechanism.

6. Confirm robot and control system compatibility.

7. Assess maintenance requirements.

8. Review scalability for future production expansion.

This sequence helps ensure the conveyor system supports both current manufacturing objectives and future production upgrades.

Frequently Asked Questions

Is a circular guide rail conveyor suitable for lithium battery manufacturing?

Yes. It is commonly used in automated assembly, inspection, laser processing, dispensing, and module production where repeatable positioning and continuous indexing are required.

What is more important: conveyor speed or positioning accuracy?

Neither should be evaluated independently. The appropriate balance depends on the production cycle and process requirements.

Can circular guide rail conveyors replace conventional belt conveyors?

Not always. Belt conveyors remain suitable for simple transportation tasks, while circular guide rail systems are better suited for precision, multi-station automation where accurate positioning is required.

Conclusion

Selecting a circular guide rail conveyor for lithium battery manufacturing is an engineering decision rather than a purchasing decision.

The optimal solution should balance positioning performance, payload capacity, production rhythm, environmental adaptability, and long-term reliability.

By evaluating the complete manufacturing process instead of individual specifications, equipment builders can improve production stability, reduce maintenance costs, and create automation systems that remain adaptable as battery manufacturing technology continues to evolve.
