1. Definition & Mechanical Principle of 3C-Dedicated Loop Track Conveyors

1.1 Product Definition

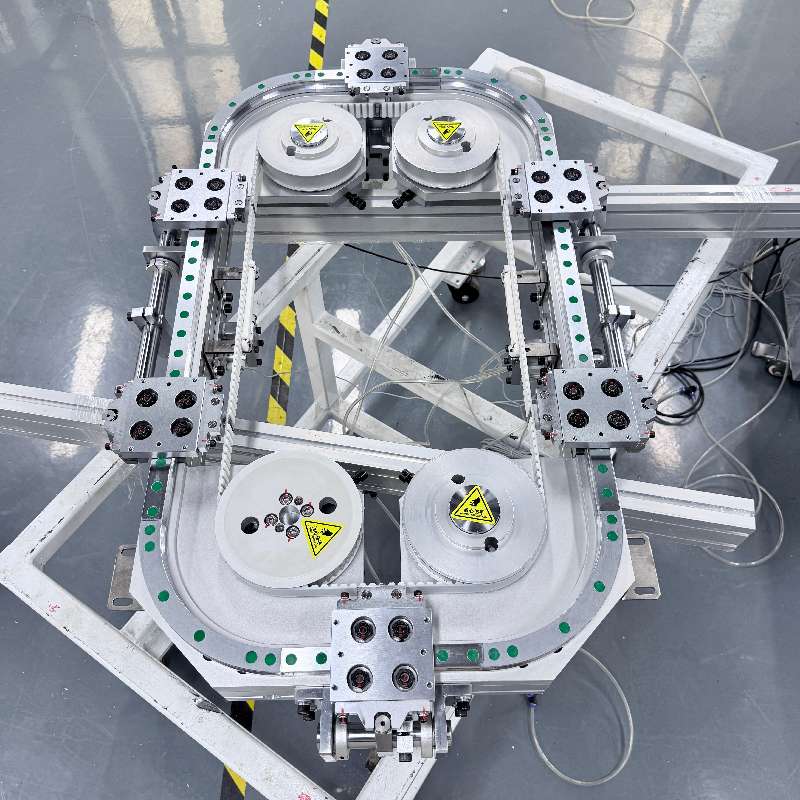

A 3C-specific precision loop track conveyor is a closed-loop V-guide roller/ball bearing cyclic conveyance system. It consists of heat-treated precision profiled rails, ESD-certified sliding carriages, clean-grade drive assemblies, lightweight extruded aluminum frames, and mechanical secondary positioning units. The system enables synchronous multi-station circulation, optimized for dispensing, screw fastening, AOI vision inspection, laser welding, and display lamination precision processes.

1.2 Core Bill of Structure

• Loop Guide Rail: Bearing steel precision ground, HRC58-62 full quenching with anti-static surface coating; available in elliptical and rectangular racetrack layouts for space-constrained workshop layouts.

• Sliding Carriage Unit: Optional ball-bearing or V-roller design with integrated conductive contact rollers. Surface resistance: 10⁶~10⁹Ω, fully compliant with ANSI/ESD S20.20 to prevent electrostatic damage to IC chips and camera sensors.

• Drive System: 90% of 3C applications adopt polyurethane steel-cord timing belt drive; high-precision scenarios utilize anti-backlash gear drive. Roller chain drive is excluded for cleanroom applications due to lubricant contamination risks.

• Auxiliary Components: Micro-quantity automatic lubrication system, fully enclosed dust hood, mechanical locating pin stations, and servo synchronous motion control system.

1.3 Operational Principle for 3C Process Environments

Servo motors drive synchronous pulleys to actuate the closed-loop timing belt, enabling all carriages to operate at fixed pitch with zero cumulative transmission error. When carriages reach process stations, mechanical locating pins execute hard-stop positioning for micron-level precision machining and vision inspection. The closed-loop cyclic design eliminates frequent origin homing, drastically reducing line changeover and commissioning time for high-mix 3C production.

2. Standardized Specification Matrix: Payload, Velocity & Positioning Accuracy

2.1 Payload Specification: Dual Evaluation of Static Rating & Dynamic Inertia

3C applications are categorized as low-load scenarios, but frequent start-stop and high jerk acceleration generate significant inertial force. A minimum safety factor of 1.3~1.5 is mandatory; selection based solely on static weight is prohibited in industrial specifications.

2.1.1 Static Rated Payload (Per Carriage, 3C Industry Standard)

• Micro-components (IC chips, lens bases): Ultra-light carriage ≤5kg

• PCB assemblies, smartphone mid-frames, battery pallets: Standard carriage 5–15kg

• Display panel tooling, multi-layer fixture assemblies: Medium-duty carriage 15–30kg

2.1.2 Dynamic Load Calculation Criteria

For acceleration 0.5–1m/s²: Dynamic Load = Total Payload × 1.4
For high-takt acceleration 1–1.5m/s²: Dynamic Load = Total Payload × 1.5

2.1.3 Mandatory 3C Payload Selection Rules

• Offset fixture applications must adopt wide-base dual-roller carriages to prevent unilateral rail abrasion and positioning drift.

• For 24/7 continuous mass production, reserve 40% extra payload margin to avoid precision degradation caused by long-term metal fatigue.

2.2 Velocity Specification: Process-Based Takt Time Matching

Different 3C processes have distinct vibration and speed thresholds. Excessive velocity causes resonant vibration that blurs vision inspection; low velocity fails to meet customer-defined takt time requirements.

Design Restriction: Velocity exceeding 2m/s is prohibited in Class 100 cleanrooms, as high airflow velocity triggers particle entrainment and violates ISO 14644-1 cleanliness standards. The mechanical limit for timing belt drive is 1.8–2m/s; exceeding this range accelerates belt fatigue and halves service life.

2.3 Positioning Accuracy: Tiered Grading for Precision 3C Processes (Highest Selection Weight)

System accuracy consists of four core metrics: repeat positioning accuracy, rail straightness, circular segment splicing error, and transmission backlash, which directly determine production yield. Three accuracy tiers are defined for differentiated 3C process deployment:

• Standard Precision Grade (±0.05mm)
Application: PCB sorting, WIP transfer, general assembly for low-end consumer electronics. Precision drift ≤0.03mm after 500,000 cyclic operations.

• High Precision Grade (±0.05mm)
Industry mainstream specification for smartphone mid-frame fastening, precision dispensing, and battery packaging. Rail splicing error ≤0.02mm with zero cumulative positioning deviation.

• Micron Ultra-Precision Grade (±0.05mm)
Optimized for camera module assembly, IC die bonding, display laser welding, and semiconductor packaging. Equipped with dual anti-backlash gear sets (angular backlash ≤5 arcsec), paired with mechanical secondary locating pins.
Additional Specification: All cleanroom-grade rails undergo stress relief aging treatment; accuracy fluctuation ≤0.01mm under ±5℃ ambient temperature variation.

3. Drive Mechanism Benchmarking for 3C Applications

Considering 3C cleanroom requirements (low noise, zero oil contamination), only two drive types are approved; roller chain drives are fully excluded from specification sheets.

Core Conclusion: 90% of mainstream 3C automated lines adopt timing belt driven loop track systems; anti-backlash gear drives are only deployed for standalone ultra-precision process stations.

4. Application-Specific Parameter Matching for Typical 3C Production Lines

4.1 Smartphone Full Assembly Line (Mid-frame / Battery / Rear Cover Assembly)

• Payload: 8–15kg per fixture, 1.4x dynamic safety margin

• Velocity: 0.4–0.9m/s, takt time: 1.2–2s per station

• Accuracy Grade: High precision ±0.05mm with mechanical secondary locating

• Custom Configuration: Fully enclosed dust hood, ESD anodized coating, low-noise timing belt

4.2 Camera Module & Lens Assembly Line

• Payload: Ultra-light fixture ≤5kg

• Velocity: 0.15–0.4m/s, low-vibration motion profile

• Accuracy Grade: Micron ultra-precision ±0.05mm, dual anti-backlash gear drive

• Custom Configuration: Stainless steel rail, dry solid lubrication, low-reflection black coating to eliminate vision interference

4.3 PCB & FPC AOI Inspection Line

• Payload: Lightweight carrier 3–8kg

• Velocity: 0.6–1.5m/s high-speed cyclic conveyance

• Accuracy Grade: Standard precision ±0.05mm for stable image acquisition

• Custom Configuration: Conductive roller ESD system to prevent electrostatic damage to flexible circuits

4.4 Display Lamination & Laser Welding Line

• Payload: Large display fixture 10–20kg

• Velocity: 0.2–0.6m/s with soft-start profile, emergency jerk prohibited

• Accuracy Grade: High precision ±0.05mm, reinforced rail frame for anti-deformation

5. Top Selection Pitfalls & Engineering Avoidance Solutions

1. Ignoring Dynamic Inertia, Only Calculating Static Payload
Risk: Overload induces roller indentation and rail permanent deformation, causing positioning drift over 0.1mm within 3 months and reduced inspection yield.
Solution: Apply 1.3–1.5x safety factor for all cyclic motion scenarios.

2. Over-Engineering: Specifying Ultra-Precision Gear Drive for General Assembly
Risk: Unnecessary 30% capital cost increase without process benefit.
Solution: ±0.05mm timing belt systems fully satisfy non-laser/non-IC 3C processes.

3. Excessive Line Velocity for Vision Inspection Stations
Risk: Velocity ＞1m/s generates resonant vibration, causing blurred images and higher AOI false reject rate.
Mandatory Standard: All vision stations limit velocity to ≤0.3m/s.

4. Deploying Industrial-Grade Tracks Without ESD/Cleanroom Certification
Risk: Static discharge damages semiconductor components; ambient particles accelerate roller wear.
Rule: All 3C lines require ANSI/ESD certified and fully enclosed dustproof configurations.

5. Reserving No Precision Degradation Margin for 24/7 Operation
Risk: Thermal stress induces minor rail deformation during continuous production.
Solution: If process requirement is ±0.05mm, select a nominal ±0.05mm system for long-term stability.

Closing Note

Contact our engineering team for customized loop track layout drawings, full datasheet specifications, and bench test reports based on your actual fixture weight, takt time requirements, and cleanroom classification. We provide region-specific CE-certified turnkey solutions for global 3C automation projects.
