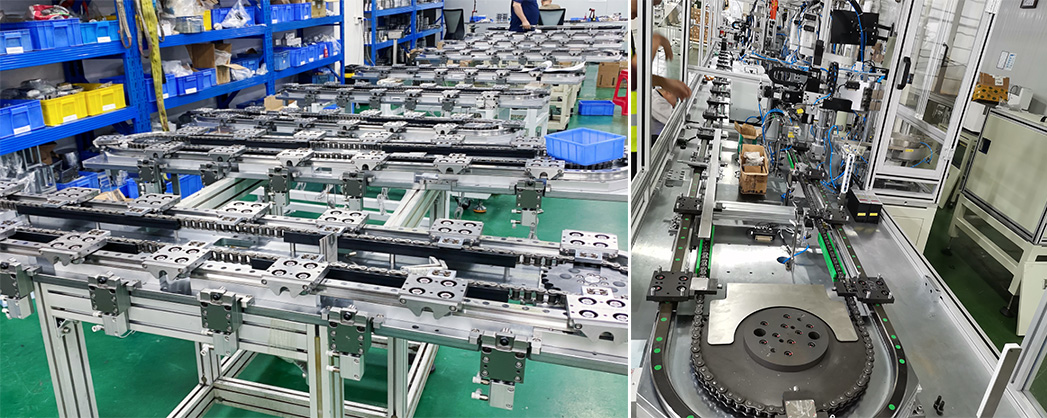

Elevating Automation Efficiency with Elliptic-Chain Driven Track Systems

In modern industrial automation, precision and durability define operational success. Our elliptical chain driven track systems revolutionize material handling with patented geometric configurations that outperform conventional circular chain systems.

Core Technological Breakthroughs

1. Elliptical Linkage Geometry
Precision-stamped chain links adopt 72° elliptical angles, reducing lateral friction by 40% compared to standard systems. This unique design enables smoother directional transitions in continuous loop operations.

2. Triple-Sealed Lubrication
Integrated micro-lubrication channels with triple-layer sealing (IP68 certified) maintain optimal grease distribution across 360° rotation points, extending maintenance intervals to 8,000+ operational hours.

3. Modular Load Distribution
Each 150mm pitch chain module bears 2.5T dynamic load capacity through our staggered roller configuration, enabling system customization from compact 3m² workcells to 50m+ production lines.

Industry-Specific Adaptations

Automotive Welding Lines: ESD-safe nickel-plated chains withstand 950°C spark exposure

Pharmaceutical Packaging: FDA-compliant polymer-coated tracks with <0.5μm surface roughness

Aerospace Assembly: Titanium alloy variants achieving ±0.05mm positioning repeatability

Smart Integration Capabilities

RFID-enabled chain links for real-time wear monitoring

Compatible with Industry 4.0 protocols (OPC UA, PROFINET)

Low-inertia design achieves 2.5m/s² acceleration rates

Technical Specifications

Why Global Clients Choose Us

15-year track system manufacturing expertise

CE/UL/GB certification compliance

24-hour rapid prototyping service

On-site commissioning in 50+ countries
