Precision Circular Track Conveyor Solution for High-Speed Optical Inspection Applications

In the highly competitive 3C electronics inspection industry, the customization capability of high-speed circular track conveyor systems plays a critical role in determining inspection accuracy, production efficiency, and equipment flexibility.

While traditional automation suppliers typically focus on standardized, large-scale production lines for industries such as lithium battery manufacturing, high-end vision inspection equipment requires a different approach — smaller batch production, frequent product changes, and rapid customization.

As a specialist in precision circular track conveyor systems, Zhenji Automation has developed flexible customization capabilities for high-speed inspection applications. The company successfully became a key conveyor system supplier for Hikvision’s industrial vision inspection production lines, providing a dedicated circular conveyor solution for optical inspection applications.

1. Project Background: Addressing the Customization Challenges of Advanced Vision Inspection Lines

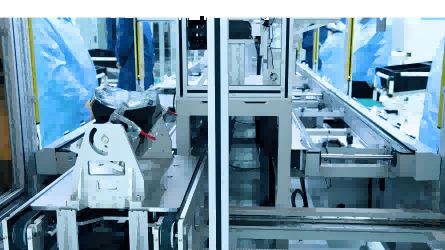

As a global leader in intelligent IoT and industrial vision technology, Hikvision’s 3C camera module and optical component inspection production lines require extremely high standards for conveyor system performance.

The project presented three major challenges:

1. Rapid equipment iteration

New equipment models are developed continuously, requiring conveyor systems to be quickly modified and adapted to different inspection platforms.

2. Small-batch customized production

Unlike traditional mass production projects, each equipment model typically requires only 5–30 conveyor units during the initial production phase.

3. Strict motion accuracy requirements

Any vibration or positioning deviation during transportation could directly affect optical imaging quality and inspection accuracy.

Previously, Hikvision evaluated multiple large-scale conveyor manufacturers. However, issues such as high minimum order quantities, long customization cycles (15–30 days), and limited flexibility for small-batch projects made long-term cooperation difficult.

The lack of flexible customization capacity became a key bottleneck for advanced vision inspection equipment deployment.

2. Customized Solution: High-Speed Precision Circular Track Conveyor System

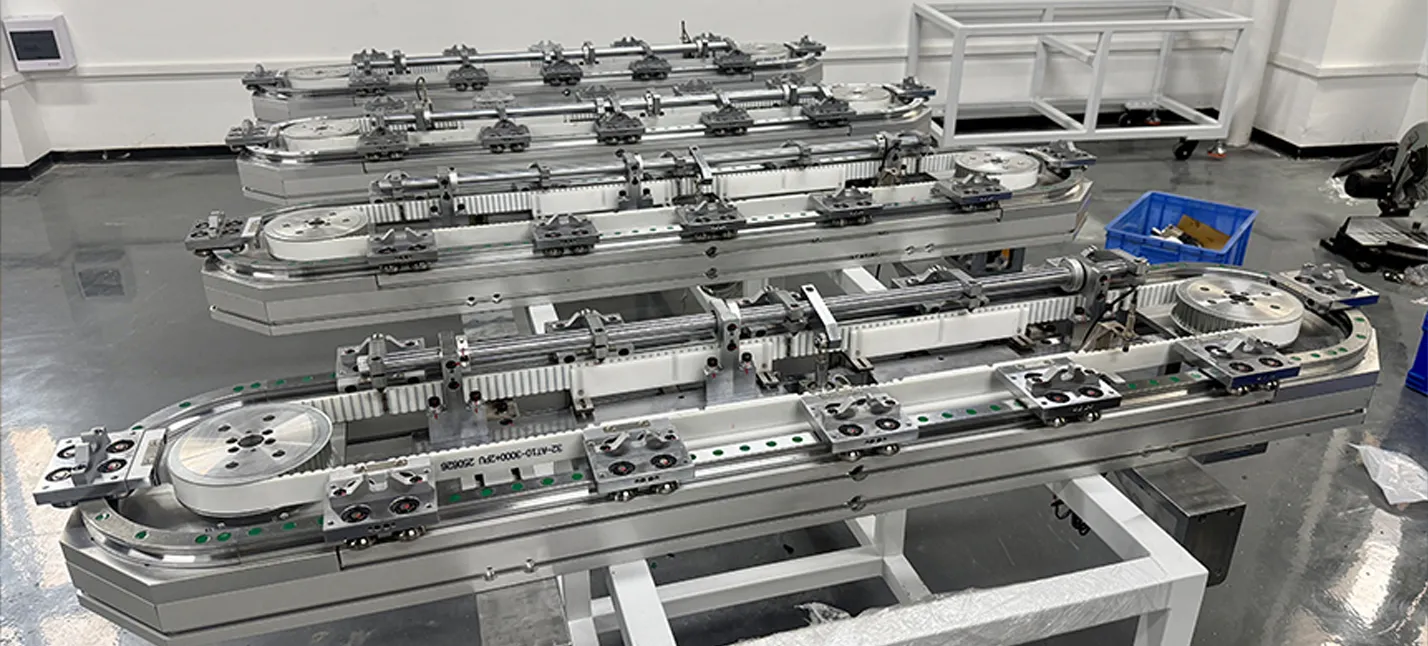

Based on Hikvision’s specific application requirements, Zhenji Automation developed a customized V-wheel driven circular track conveyor system.

The complete solution was engineered around three key areas:

• Mechanical structure optimization

• Motion performance improvement

• System integration capability

2.1 Key Performance Specifications

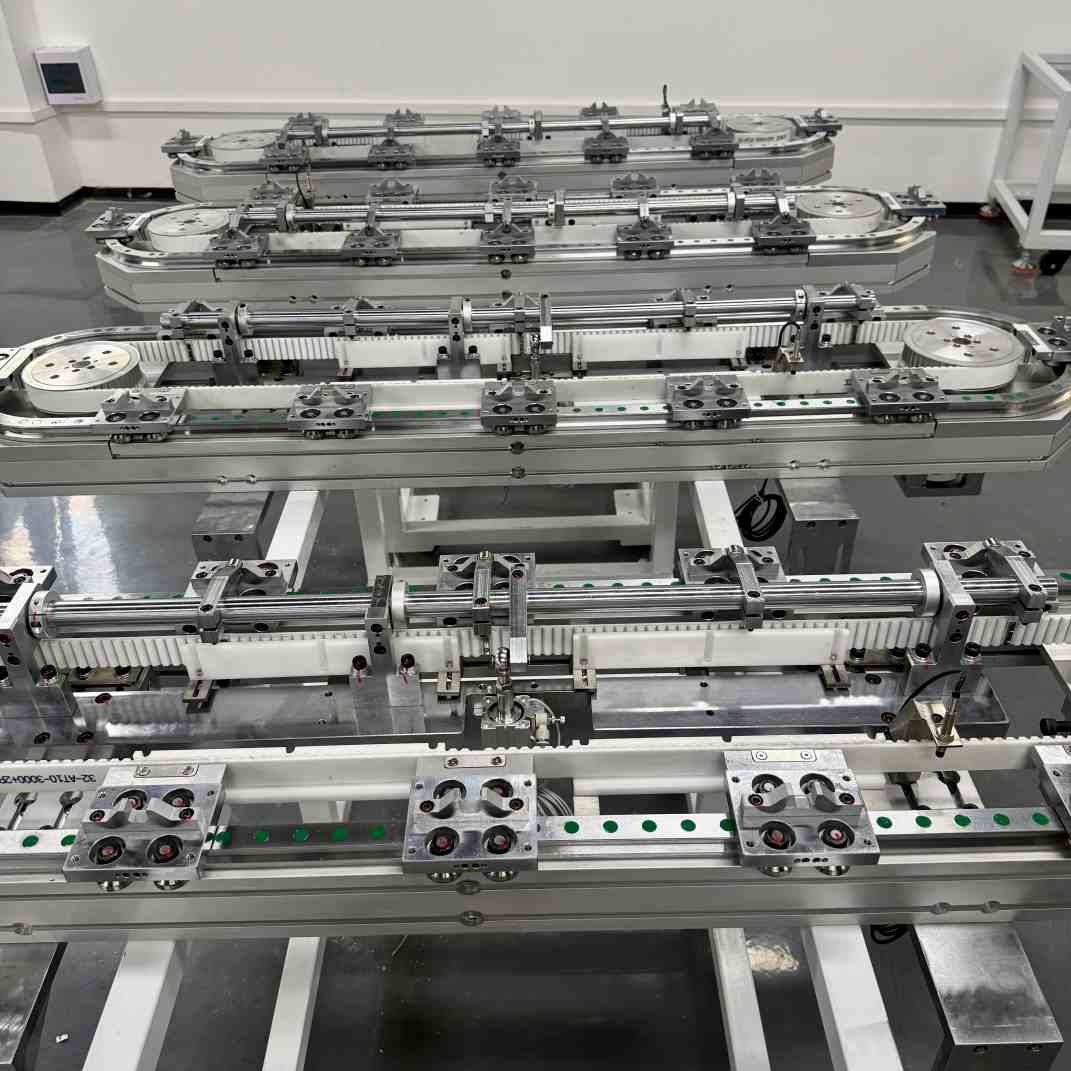

The system adopts an elliptical closed-loop conveyor configuration with:

• Rated payload: 50 kg

• Maximum speed: 1.5 m/s

• Repeat positioning accuracy: ±0.05 mm

• 24/7 continuous operation vibration amplitude: ≤0.02 mm

The performance fully meets the stability requirements of high-precision 3D vision inspection systems.

2.2 Structural Optimization for 3C Manufacturing Environments

The conveyor system combines:

• Lightweight high-rigidity aluminum track structure

• Self-cleaning V-wheel guidance mechanism

• Cleanroom-compatible design

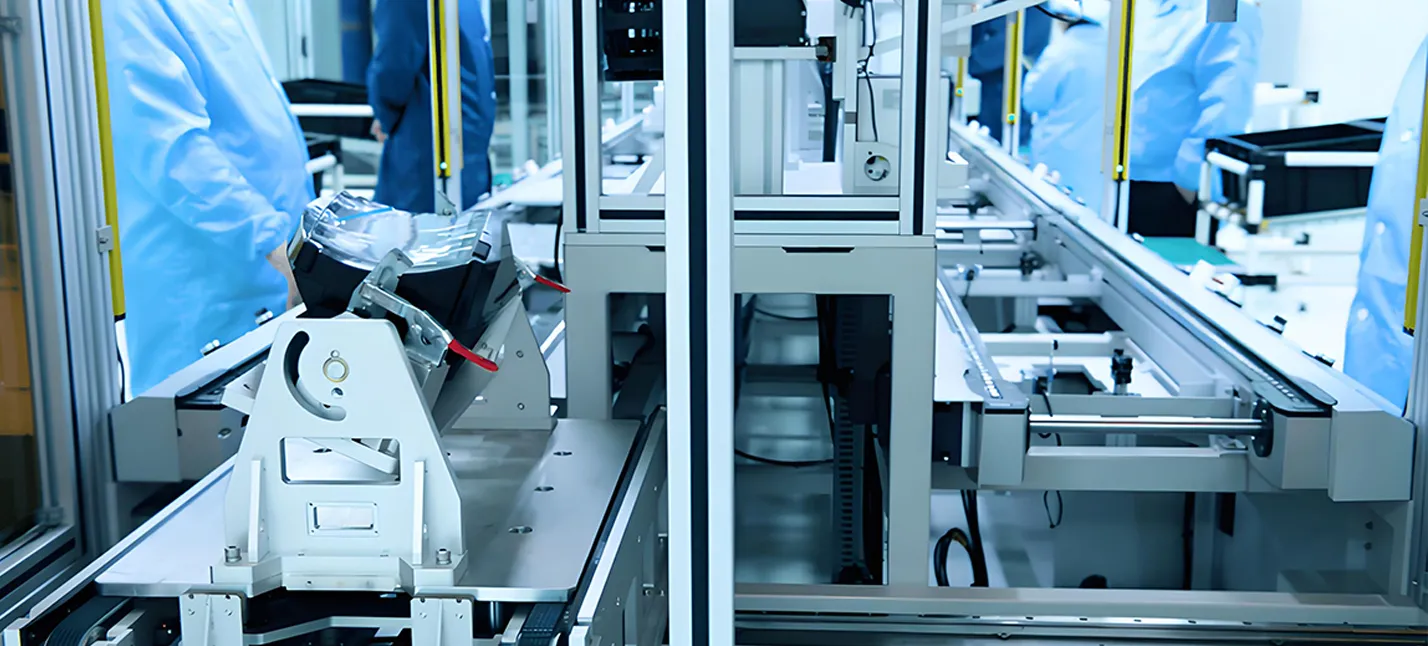

The system interface includes standardized mounting flanges, allowing seamless integration with Hikvision vision modules and six-axis industrial robots without additional mechanical redesign.

2.3 Complete Conveyor System Integration

Beyond the circular track system, Zhenji Automation also provided:

• Customized tooling fixtures

• Synchronized transmission systems

• Servo motion control solutions

The integrated delivery model helped reduce equipment assembly time by approximately 40%.

3. Project Results: Proven Performance in High-End Manufacturing Applications

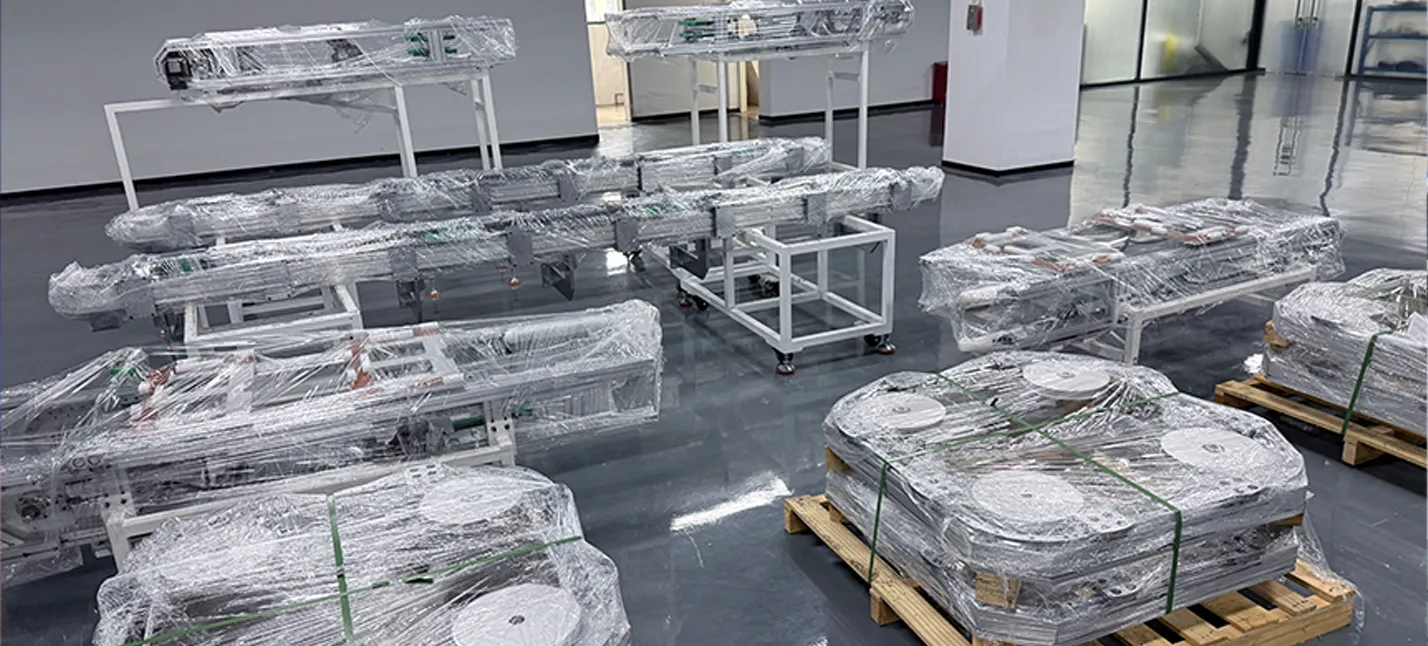

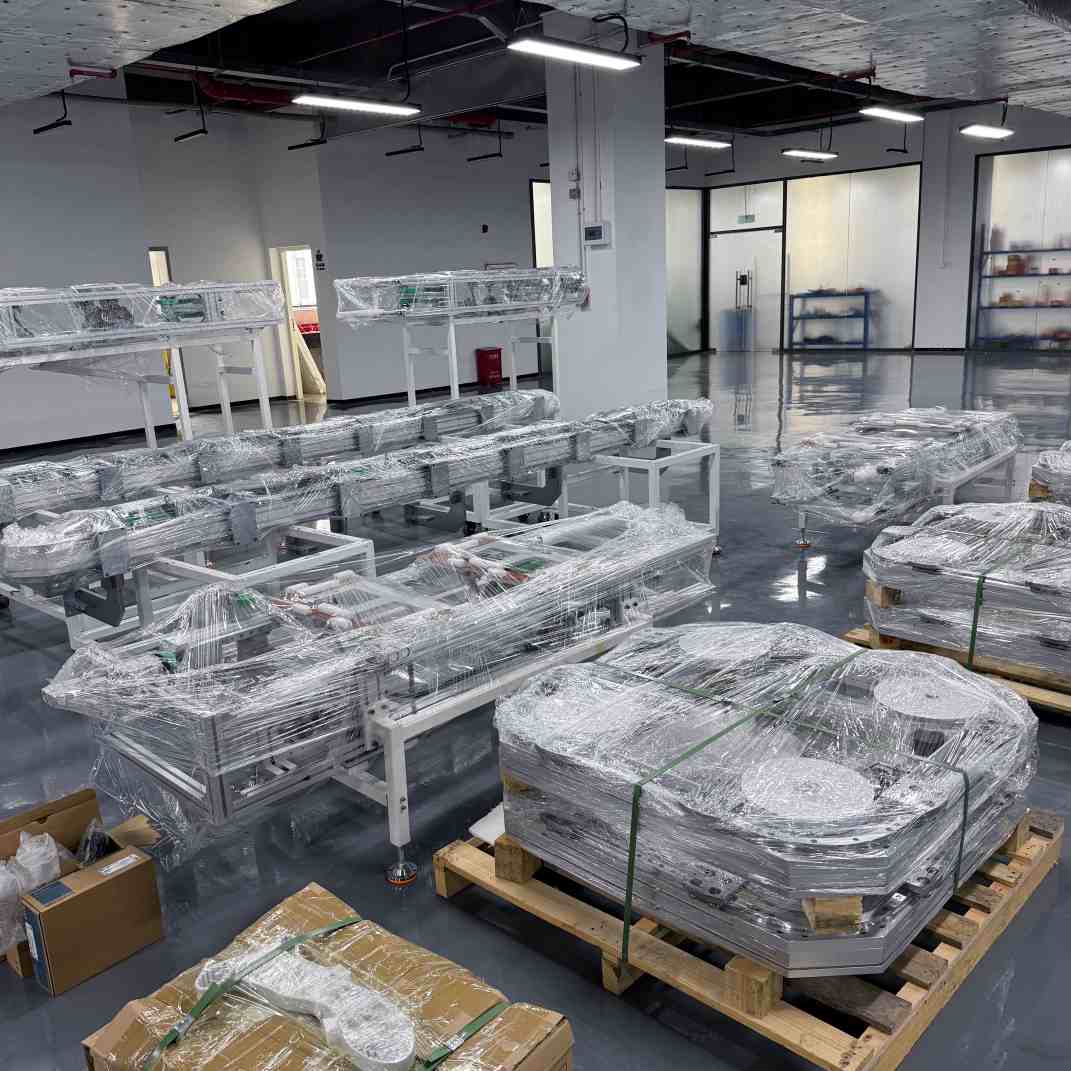

By June 2026, Zhenji Automation had delivered more than 100 customized high-speed circular track conveyor systems for Hikvision.

The systems have been deployed across multiple intelligent manufacturing facilities and supporting overseas projects.

All critical performance indicators successfully passed Hikvision’s supplier quality validation process.

Operational Reliability

• 24-hour continuous operation failure rate: <0.2%

• Annual accuracy degradation: <0.8%

The system reliability significantly exceeds typical industry performance levels.

Faster Delivery and Engineering Response

• Average delivery time for small-batch customized orders: 7 days

• Fastest production line modification cycle: 3 days

This rapid response capability supports Hikvision’s fast product development and equipment upgrade requirements.

Flexible Production Capacity

Supported by six independent flexible manufacturing cells, Zhenji Automation can deliver:

• Up to 2,000 customized high-speed circular track conveyor systems annually

• Multiple product variations simultaneously

• Small and medium-volume customized orders with consistent priority




4. Why Hikvision Selected Zhenji Automation

Unlike traditional automation suppliers focused mainly on standardized mass production, Zhenji Automation specializes in flexible, high-performance conveyor solutions for advanced manufacturing equipment.

Three core capabilities differentiate the company:

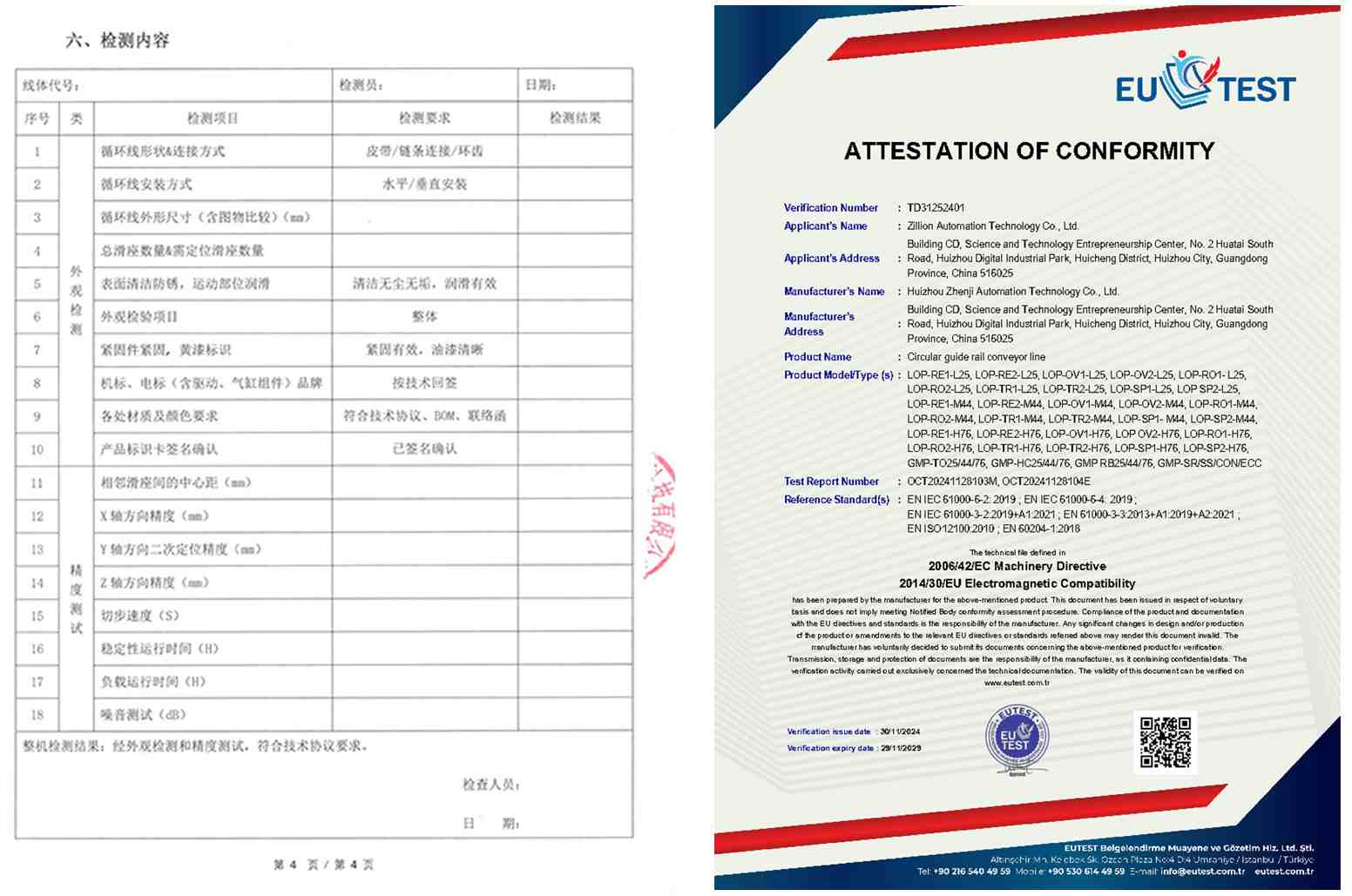

4.1 Advanced Quality Control System

The entire production process follows strict supplier quality requirements.

Each conveyor system undergoes:

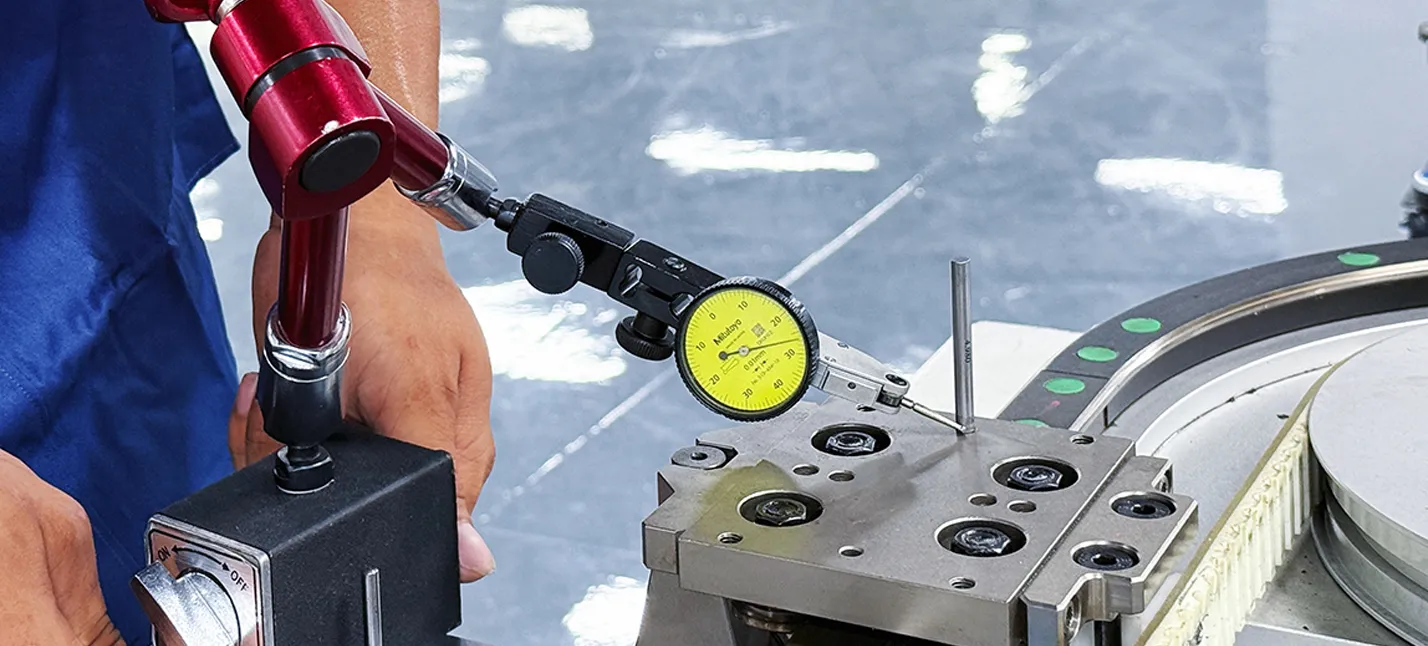

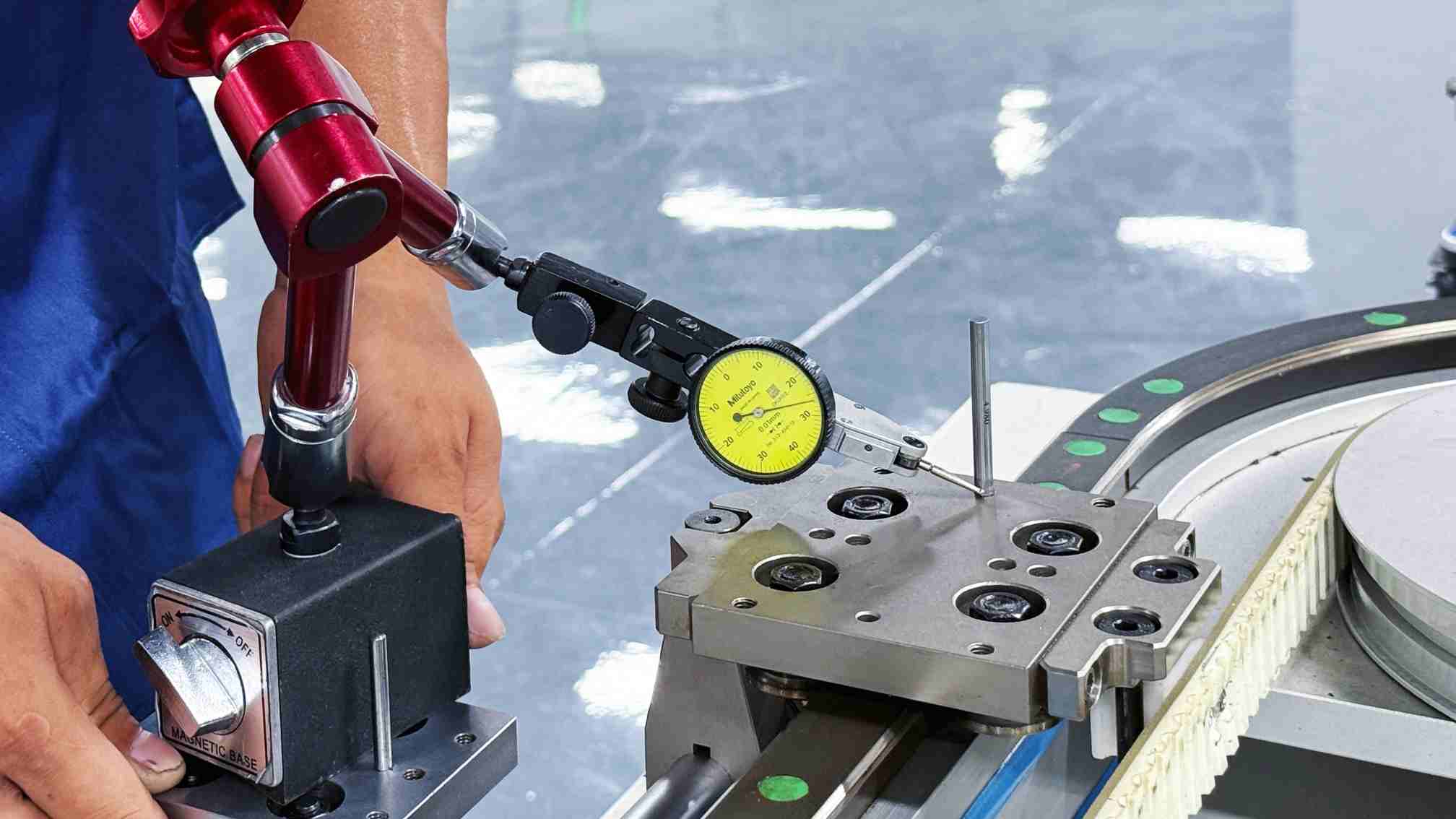

• Coordinate measurement inspection

• High-speed vibration testing

• Surface roughness inspection

• 72-hour continuous operation simulation testing

Product consistency reaches 99.5%.

4.2 Flexible Custom Manufacturing Capability

Instead of relying on a single standardized production line, Zhenji Automation operates multiple independent flexible manufacturing units.

This allows:

• Small-batch orders from 1–50 units

• Rapid engineering modifications

• Customized solutions for complex automation equipment

The approach addresses a common industry gap between standard conveyor suppliers and highly customized equipment manufacturers.

4.3 Regional Engineering Support Capability

With a manufacturing base in Huizhou, China, Zhenji Automation provides:

• 24-hour on-site measurement and technical support within the Greater Bay Area

• 48-hour engineering response nationwide

This service model enables efficient support for multi-site intelligent manufacturing operations.
