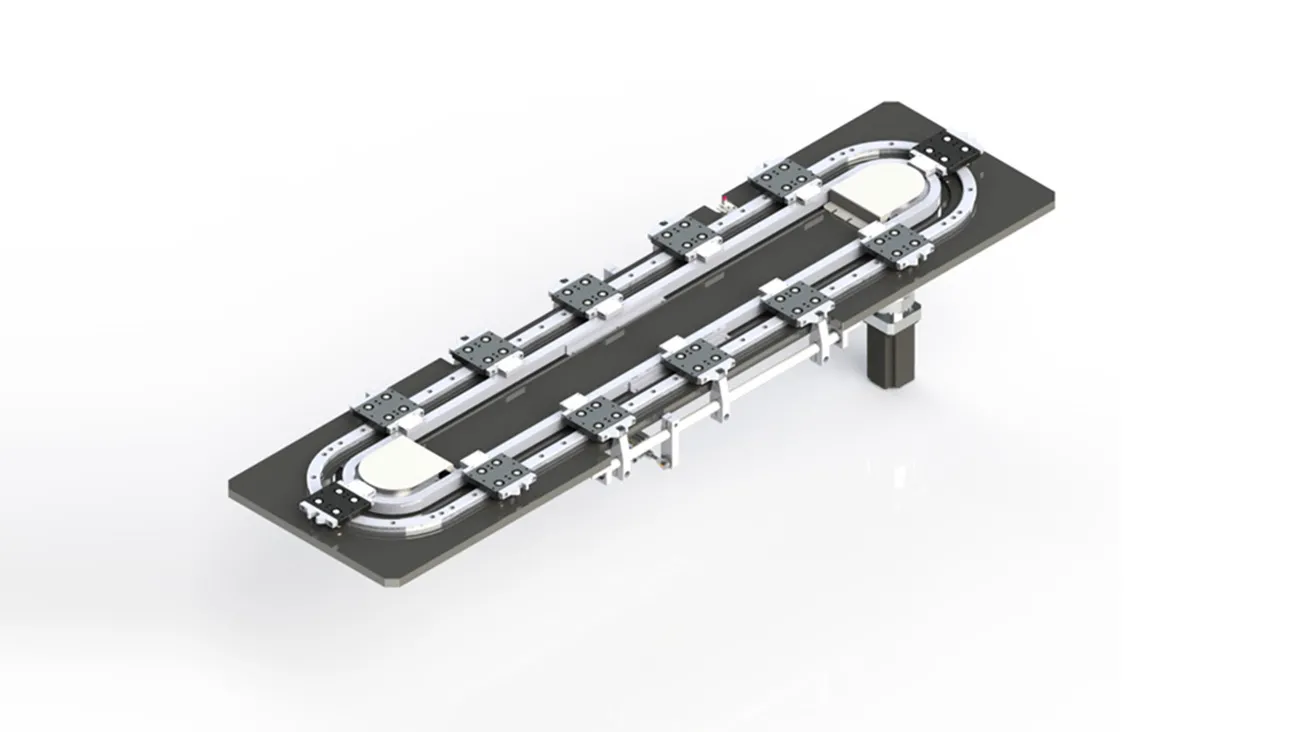

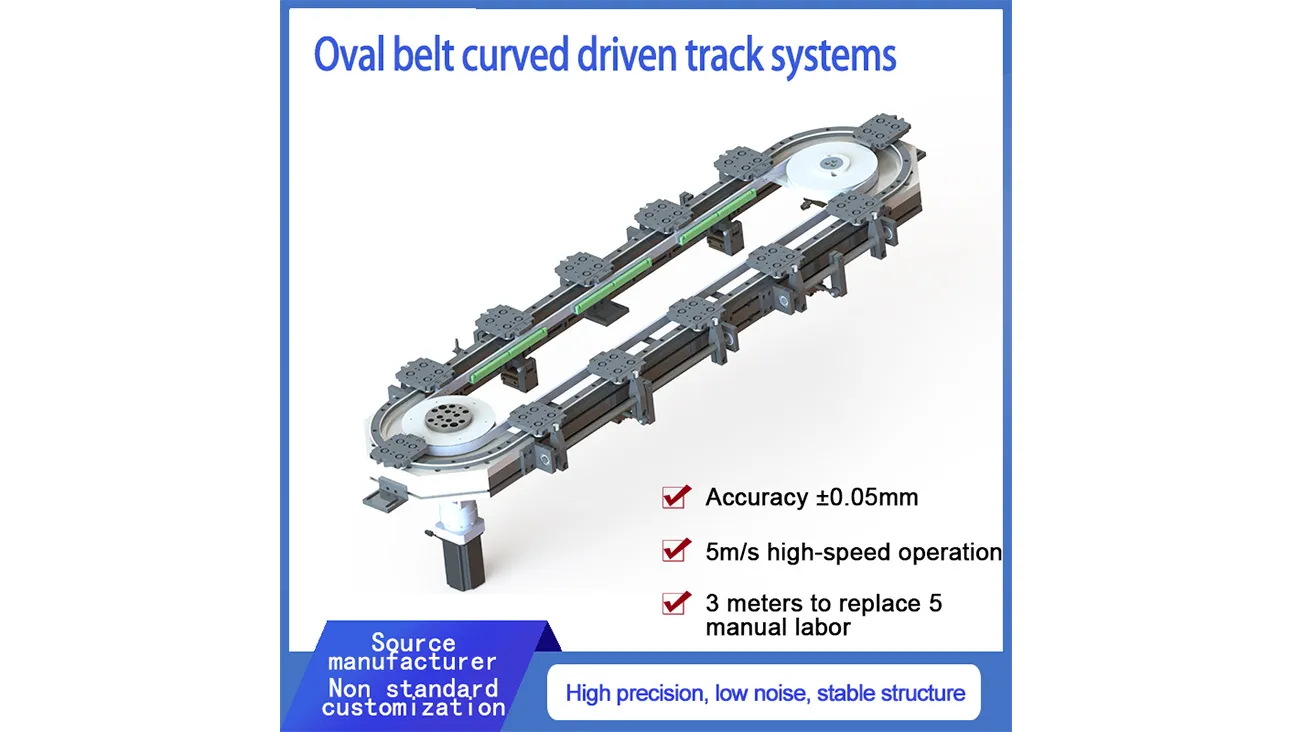

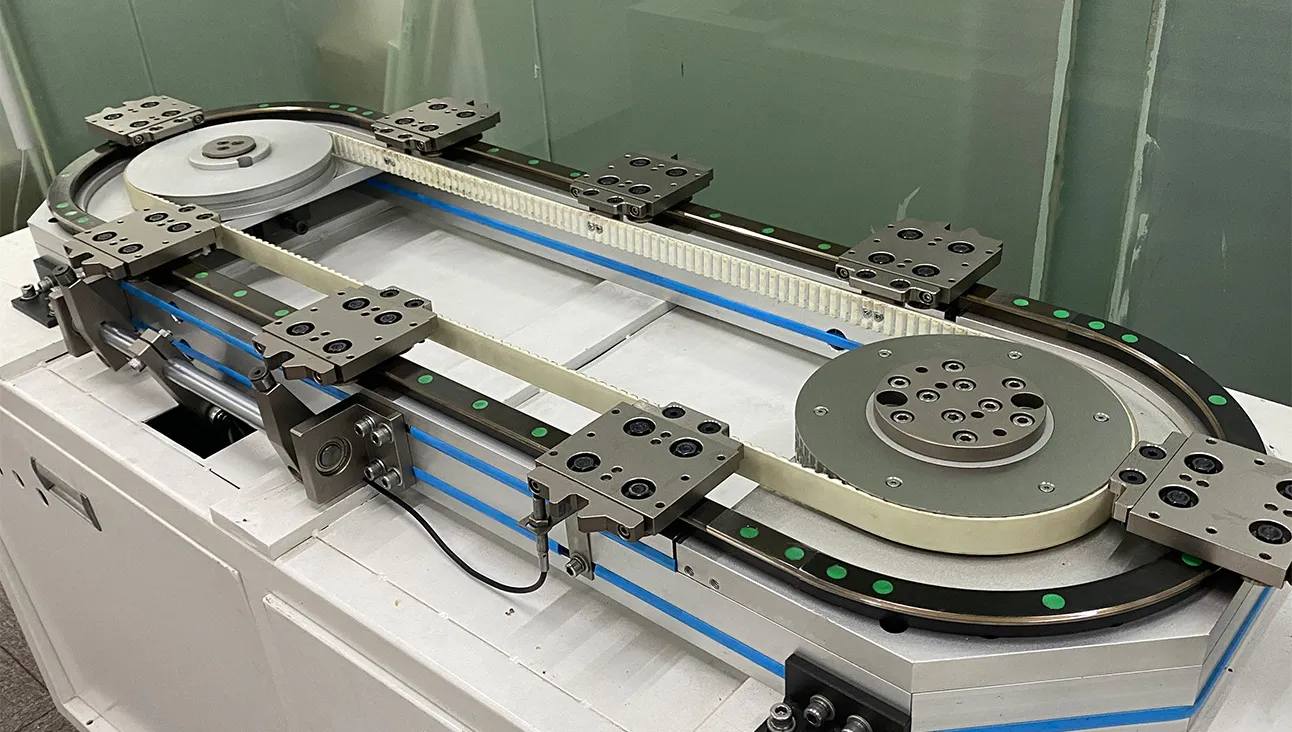

In the rapidly evolving field of unmanned aircraft manufacturing, where precision, reliability, and automation are crucial, our circular rail conveyor with an elliptical belt emerges as a revolutionary solution for both automated detection and assembly lines.

PRODUCTS VIDEO Inquire Now NEXT PRODUCT

INQUIRE NOW

Please leave your email address, our professionals will contact you as soon as possible!

PRODUCT DETAILS

5ms high speed operation

Positioning accuracy: ±0.05mm

Single track conveyor

Transmission method: belt

Precision Circular Conveyor System | High-Speed Automation

Product Highlights:

✔️ Ultra-Precise Positioning (±0.05mm) with servo-driven control, ideal for assembly lines requiring micron-level accuracy.

✔️ Heavy-Duty Construction – Stainless steel track hardened to HRC60+, resistant to wear in 24/7 automotive/electronics production.

✔️ Modular Design – Expandable up to 15 stations, compatible with SCARA robots and vision inspection systems.

Key Parameters

Load Capacity: 5kg~200kg/unit

Speed: 0.1~2m/s (IP67 sealed for dust/oil environments)

Customizable track diameters: 500mm~5m

Industry Applications

RELATED FAQ

Q: What types of circular guides are available?

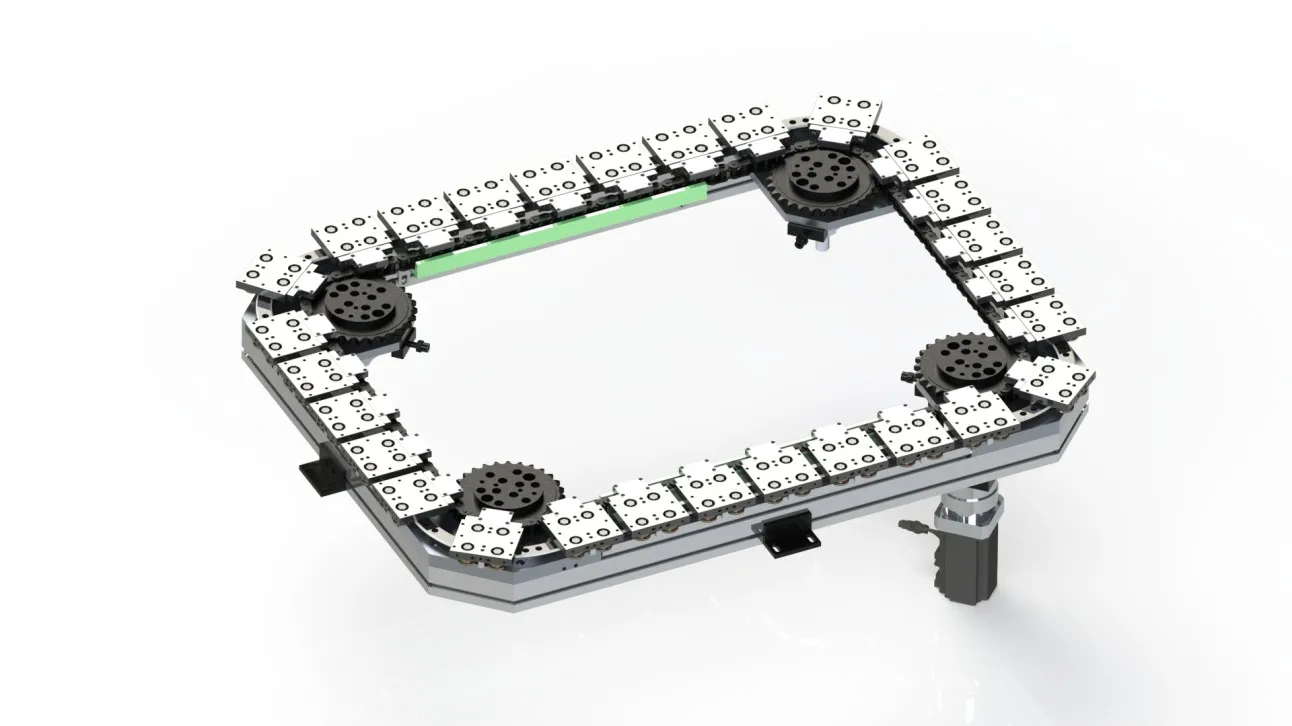

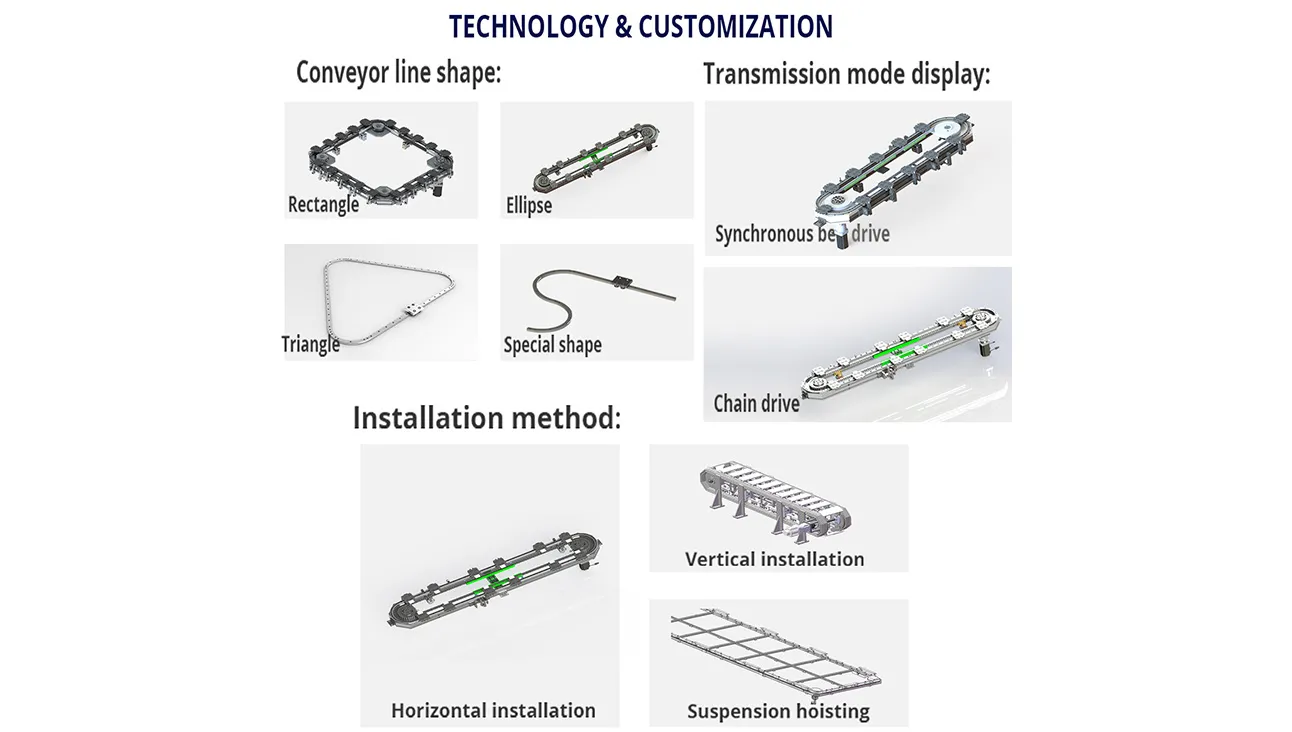

According to their shape, they can be divided into elliptical circular guides, circular circular guides, rectangular guides, etc.;

According to the transmission method, they can be divided into synchronous belt circular guides and chain circular guides

Q: What is the accuracy of circular guides?

The repeat positioning accuracy can reach ±0.05mm, depending on the design and manufacturing process of the guide and the quality of the selected components and other factors

Q: How harsh a production environment can it adapt to?

IP65 protection level is optional, supporting a temperature range of -20℃ to 80℃, and an accordion cover is required for dust and humid environments.

Q: Customization and compatibility?

According to the specific requirements of customers, such as guide shape, size, load capacity, accuracy requirements, transmission method, etc., customized circular guide systems are provided for customers

Third-party compatibility: Supports seamless docking with ABB, KUKA robotic arms and Keyence, Cognex vision systems, and provides standardized communication protocols.

Q: Is the circular guide conveyor line adaptable to industry?

Automobile manufacturing, electronics industry, pharmaceutical packaging, daily chemical products, aerospace technology, new energy batteries, scientific research monitoring, etc.
