Revolutionize Your Production Line with Our Cutting-Edge Ring Track Systems
Our high-precision ring track systems are designed to meet the demands of modern industrial automation, offering seamless integration into automotive assembly, semiconductor manufacturing, and medical device production. Engineered with carbon fiber-ceramic composite rails , these systems reduce weight by 30% while enhancing durability by 50%, ensuring long-term reliability even in harsh environments. The servo-driven modular design allows for dynamic adjustments, supporting production lines that require rapid reconfiguration for small-batch or custom orders.
INQUIRE NOW
Please leave your email address, our professionals will contact you as soon as possible!
PRODUCT DETAILS

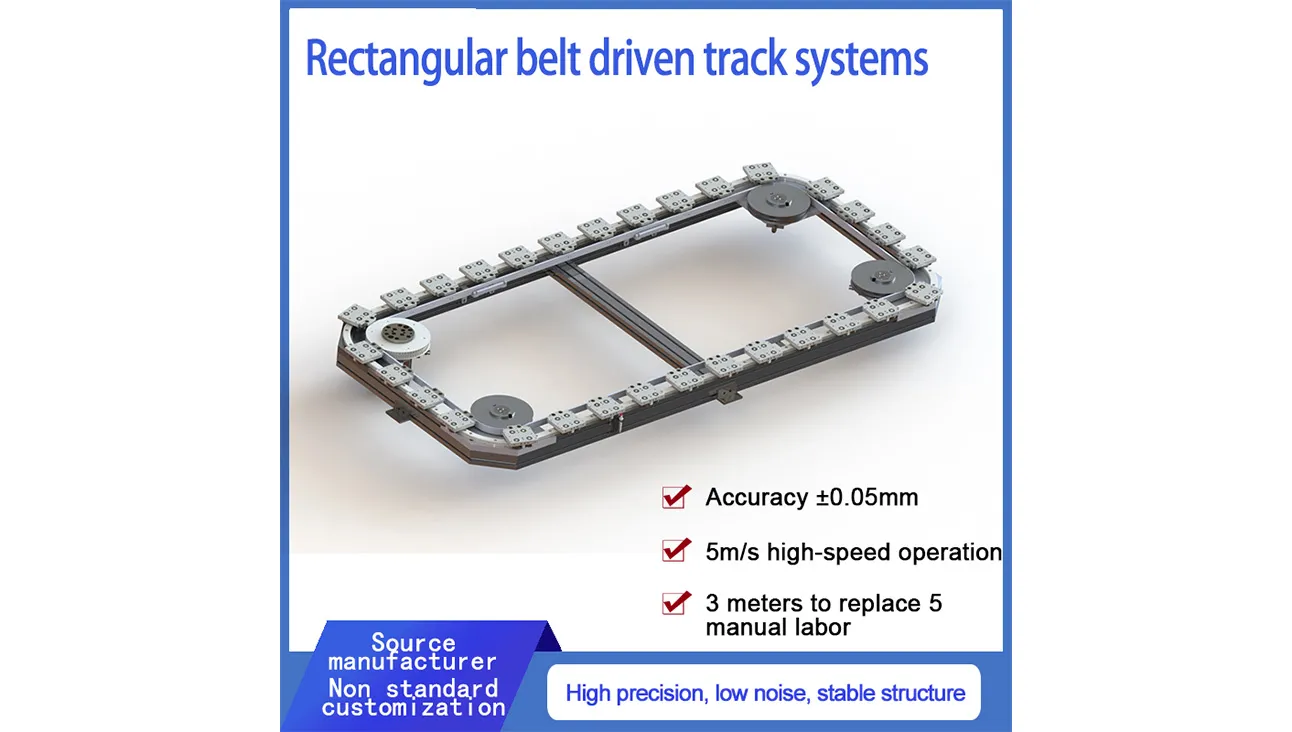

5ms high speed operation
Dust and dirt proof performance
Positioning accuracy: ±0.05mm

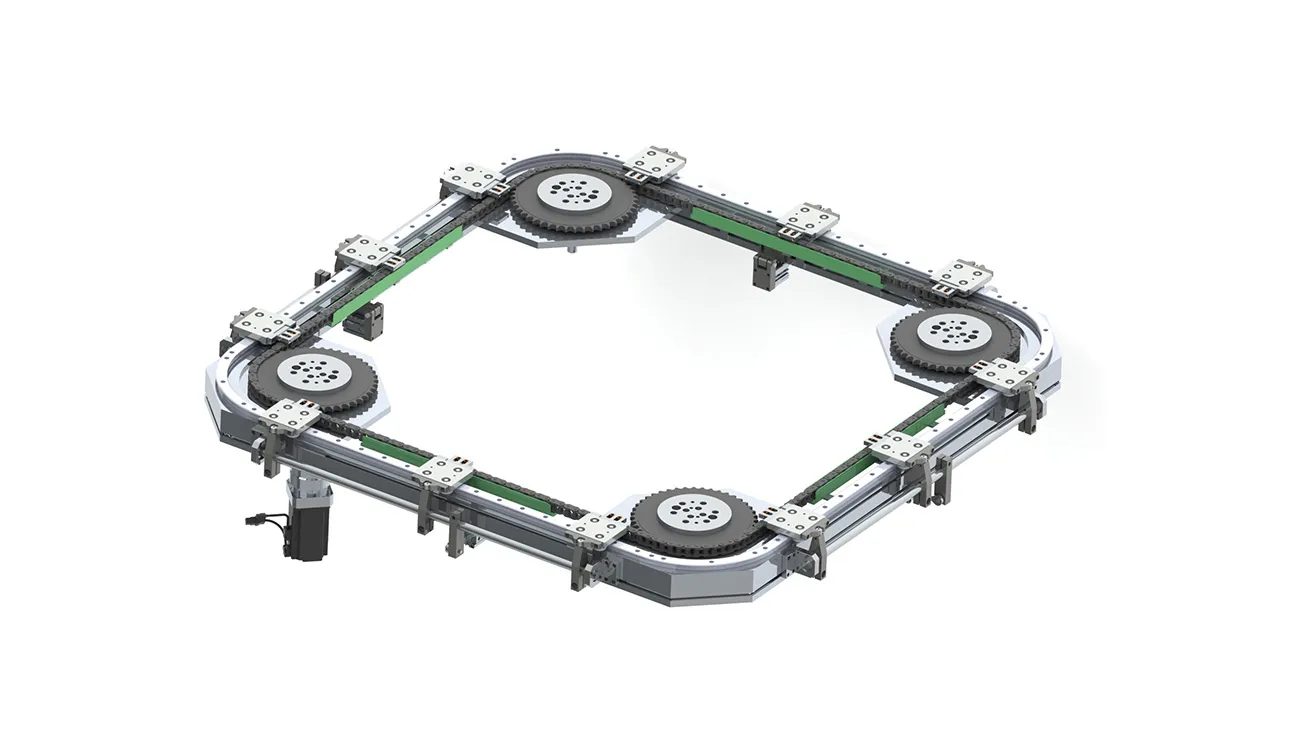

Shape: Rectangle
Key Features & Technical Specifications
· Repeatability: ±0.05mm positioning accuracy , ideal for applications like semiconductor wafer handling or medical device assembly.
· Smart Integration: Built-in vibration and temperature sensors enable AI-driven predictive maintenance, reducing downtime by 70% .
· Hygienic Design: FDA-approved stainless steel options ensure compliance with medical and food processing standards.
· Eco-friendly Materials: EU-certified low-carbon alloys align with sustainability goals.
Industry-Specific Applications
Automotive & EV Manufacturing
· Power EV battery assembly lines with multi-tiered track systems , supporting Tesla 4680 battery production to achieve 18% cost savings .
· Handle brake disc machining and temperature sensor assembly with dust-resistant designs .
· Optimize OLED panel manufacturing with modular track segments for flexible layout adjustments.
Medical & Pharmaceutical
· Deploy biocompatible ring tracks for sterile environments, supporting gene sequencing and surgical robot applications.
· Achieve ISO 14644-1 Class 5 cleanroom compliance with sealed bearing systems .
Why Choose Our Ring Track Systems?
· Customization: From 160mm to 1,040mm workpiece pallets , we tailor solutions to fit your production space and throughput.
· Energy Efficiency: Low-friction T-shaped tracks reduce power consumption by 25% compared to traditional conveyors.
RELATED PRODUCTS
RELATED FAQ
Q: What types of circular guides are available?

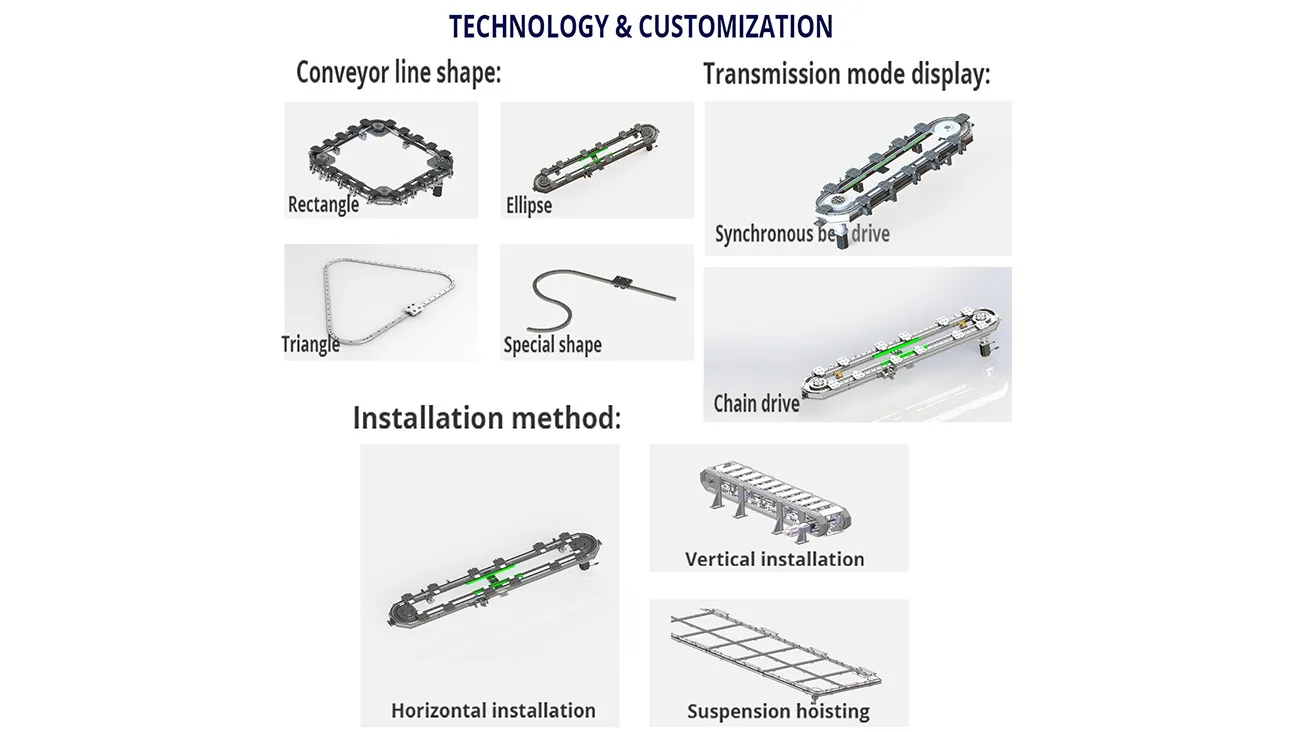

According to their shape, they can be divided into elliptical circular guides, circular circular guides, rectangular guides, etc.;
According to the transmission method, they can be divided into synchronous belt circular guides and chain circular guides
Q: What is the accuracy of circular guides?
The repeat positioning accuracy can reach ±0.05mm, depending on the design and manufacturing process of the guide and the quality of the selected components and other factors
Q: How harsh a production environment can it adapt to?
IP65 protection level is optional, supporting a temperature range of -20℃ to 80℃, and an accordion cover is required for dust and humid environments.
Q: Customization and compatibility?
According to the specific requirements of customers, such as guide shape, size, load capacity, accuracy requirements, transmission method, etc., customized circular guide systems are provided for customers
Third-party compatibility: Supports seamless docking with ABB, KUKA robotic arms and Keyence, Cognex vision systems, and provides standardized communication protocols.
Q: Is the circular guide conveyor line adaptable to industry?
Automobile manufacturing, electronics industry, pharmaceutical packaging, daily chemical products, aerospace technology, new energy batteries, scientific research monitoring, etc.
