Precision circular conveyor, a core conveying equipment for industrial automation, features ±0.05mm high-precision positioning and wear-resistant bearing steel construction, ensuring low-noise operation. Suitable for 3C electronics, automotive parts, and medical equipment applications.
INQUIRE NOW
Please leave your email address, our professionals will contact you as soon as possible!
PRODUCT DETAILS
PLC / MES / Wireless Communication
Repeatability: ±0.05mm
3m/s or even faster
Accordion cover/sheet metal protection

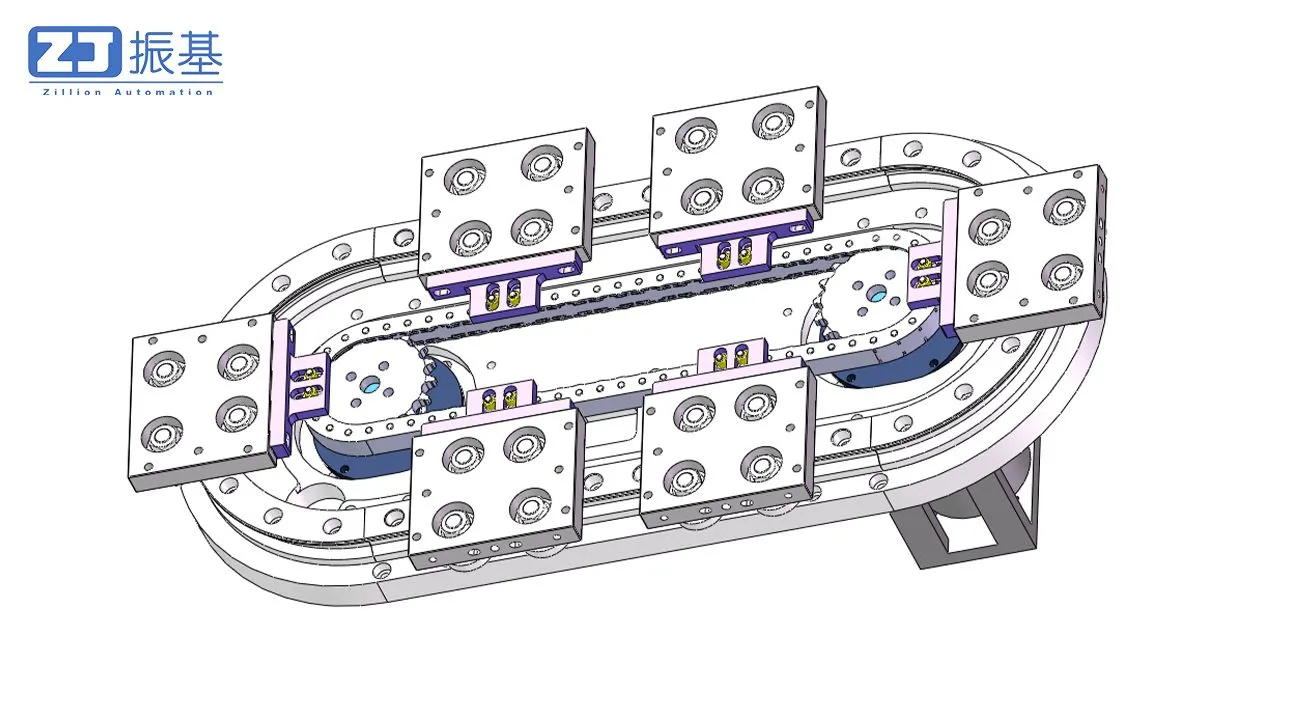

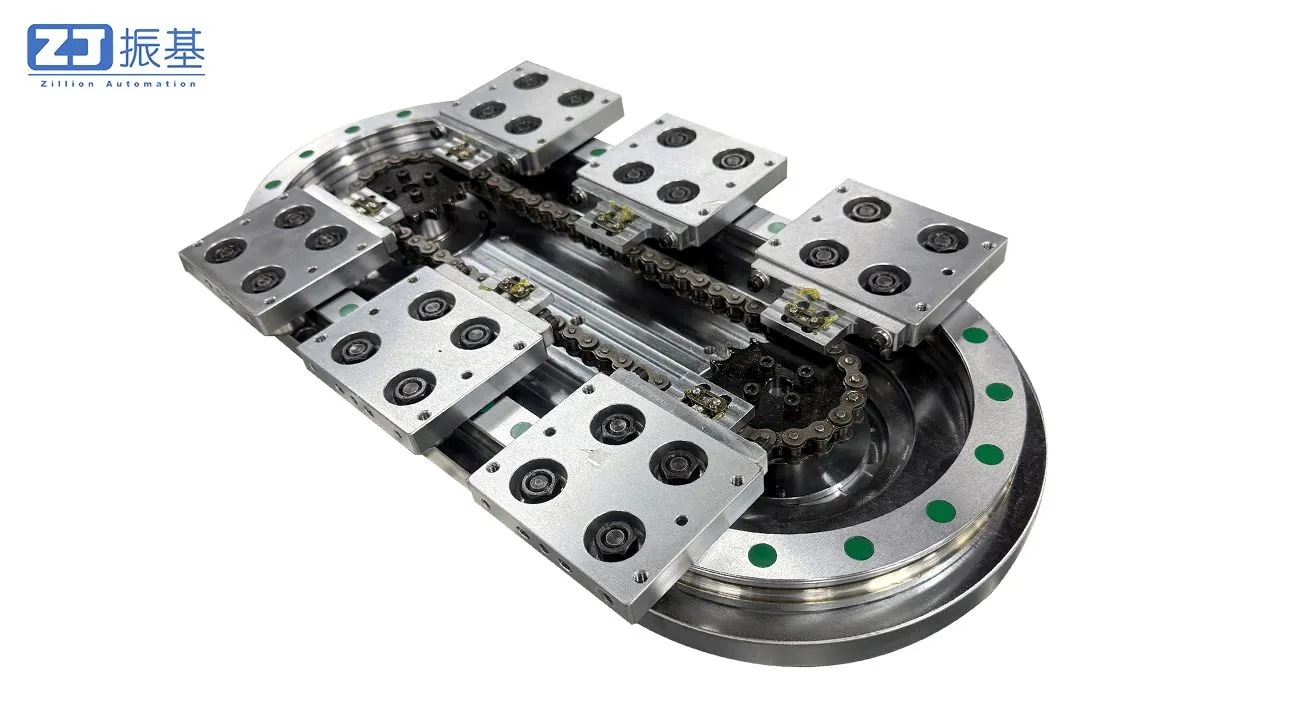

Elliptical Precision Ring Guide Rail Conveyor with Base Plate Support and Chain Drive Solution
| Structural Features: |
| ○ Elliptical shape |
| ○ Base plate structure |
| ○ Precision chain drive |
| ○ Servo drive |
| Application Features: |
| ○ Long-distance conveying, with a circumference exceeding 100 meters. |
| ○ Light-load conveying, good stability, maximum load per slider 25kg. |
| ○ Intermittent manual operation possible, with multiple speed settings. |
| ○ Repeat positioning accuracy ±0.05~±0.5mm (customizable). |
Core Value
Flexible Adaptability: Elliptical, edgeless design fits snugly against workshop corners, saving floor space.
Stable Heavy Load: Rigid base support and stable chain drive power transmission, suitable for medium to heavy load conveying.
Low Maintenance: IP54 dust and splash protection, centralized chain lubrication reduces maintenance frequency.
Applicable Scenarios:
Suitable for continuous or intermittent conveying in medium to heavy load and light dust/splash environments across multiple industries:
New Energy Batteries: Cell assembly and module testing, adaptable to multi-equipment layouts in workshops.
Automotive Electronics: Onboard sensor assembly, precise positioning ensures assembly accuracy.
Medical Devices: Small component processing, low noise meets cleanroom requirements.
Core Performance:
Integrates the advantages of elliptical tracks and chain drives, performance meets industrial precision conveying standards:
Precise Positioning: Repeatability ±0.05mm, smooth track transition without jamming.
Stable Load Capacity: Single-station load ≤150kg, vibration-resistant base support.
IP54 Protection: Dust and splash protection, suitable for most industrial workshop conditions.
RELATED PRODUCTS
RELATED FAQ
Q: What types of circular guides are available?
According to their shape, they can be divided into elliptical circular guides, circular circular guides, rectangular guides, etc.;
According to the transmission method, they can be divided into synchronous belt circular guides and chain circular guides
Q: What is the accuracy of circular guides?
The repeat positioning accuracy can reach ±0.05mm, depending on the design and manufacturing process of the guide and the quality of the selected components and other factors
Q: How harsh a production environment can it adapt to?
IP65 protection level is optional, supporting a temperature range of -20℃ to 80℃, and an accordion cover is required for dust and humid environments.
Q: Customization and compatibility?
According to the specific requirements of customers, such as guide shape, size, load capacity, accuracy requirements, transmission method, etc., customized circular guide systems are provided for customers
Third-party compatibility: Supports seamless docking with ABB, KUKA robotic arms and Keyence, Cognex vision systems, and provides standardized communication protocols.
Q: Is the circular guide conveyor line adaptable to industry?
Automobile manufacturing, electronics industry, pharmaceutical packaging, daily chemical products, aerospace technology, new energy batteries, scientific research monitoring, etc.
