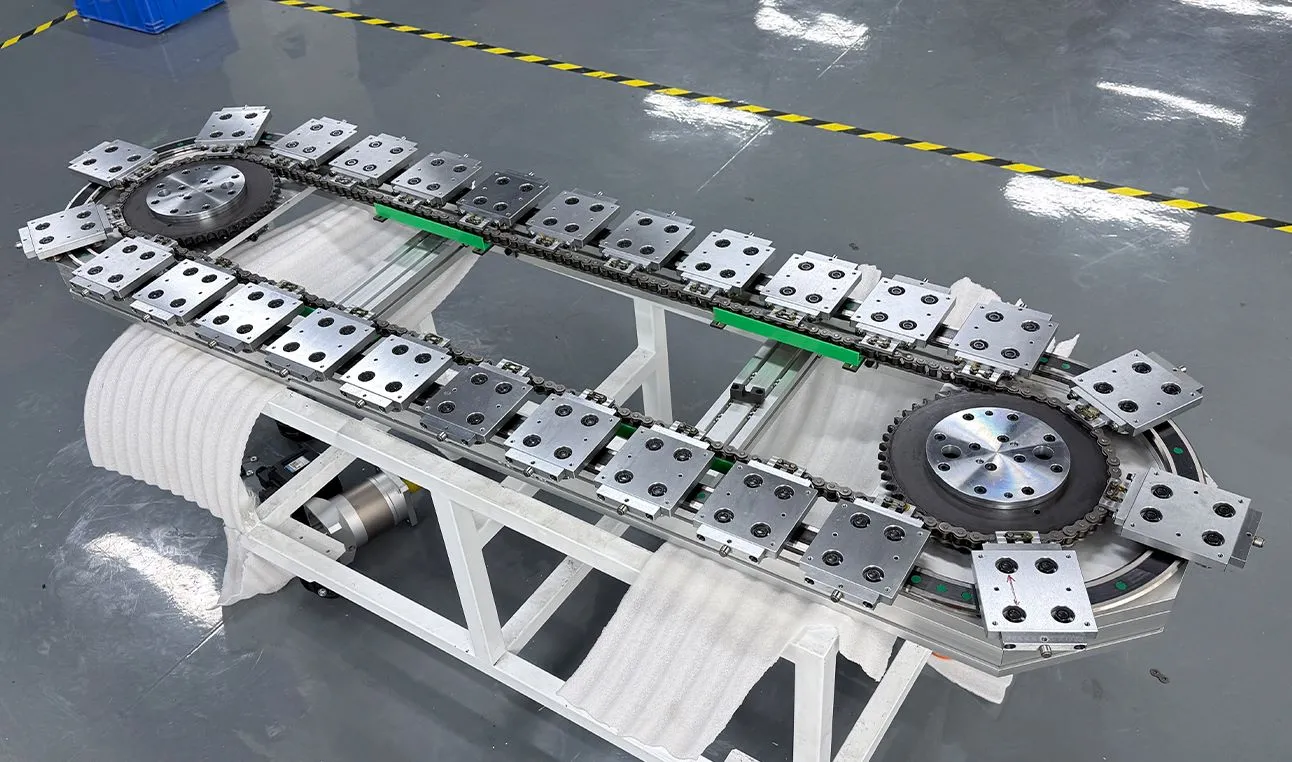

Precision-designed curved guide rail

Ready-to-use design, reducing costs and space requirements:

Shortened design and installation cycle: Integrated profile frame, no on-site processing required, standardized parts, reducing labor and time costs;

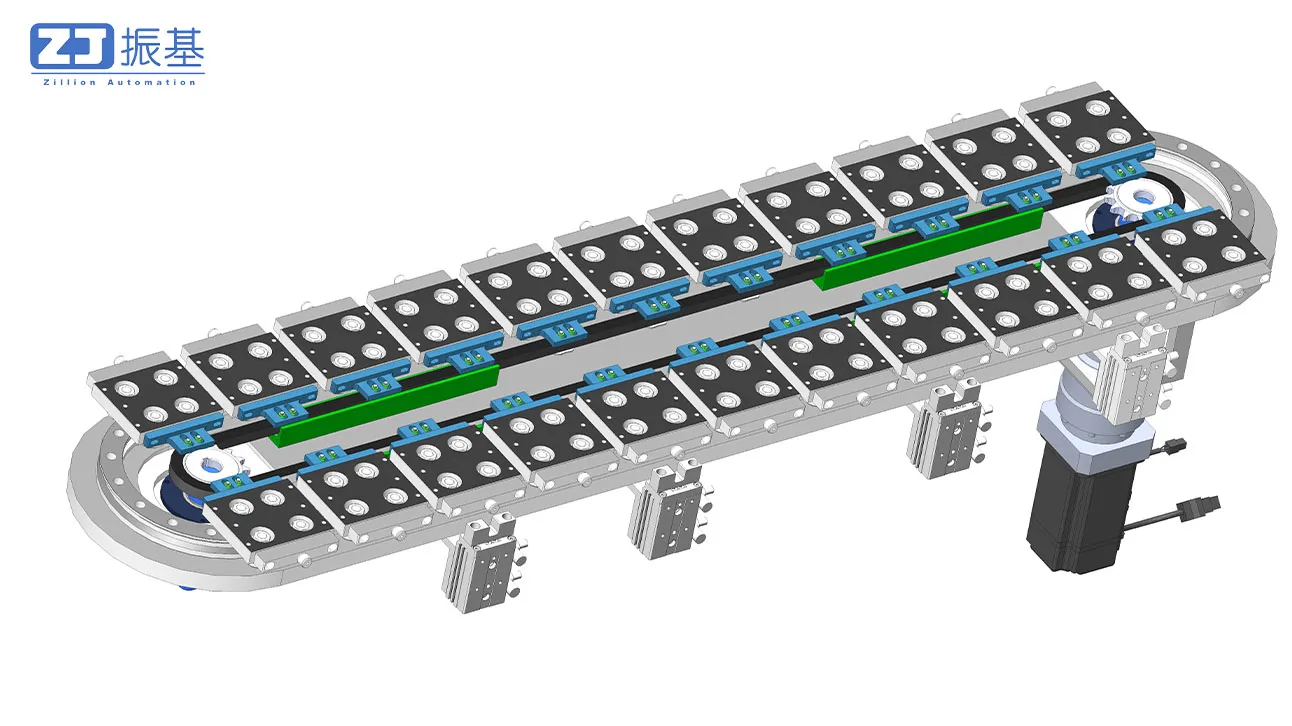

Optimized space utilization: Elliptical closed-loop layout, no need for backhauling space, workstations can be integrated along the line and at the center, saving over 40% of floor space compared to traditional linear lines;

Reduced process costs: Continuous chain drive, integrating dispersed processes into a single loop system, reducing equipment connection investment;

Ensuring accuracy and stability, adaptable to diverse industrial environments:

High-precision repeatability: Carriage locking mechanism, elliptical track straight section positioning accuracy ±0.05mm, ensuring consistency in mass production;

Overload protection: Built-in trip locking mechanism, automatic disengagement in case of overload, preventing chain and track damage, reducing maintenance downtime;

All-environment adaptability: Impact-resistant and corrosion-resistant profile frame (optional coating), sealed chain drive, can operate in dusty and humid environments;

Suitable for light to medium loads, batch continuous/intermittent operation, applicable to multiple industries:

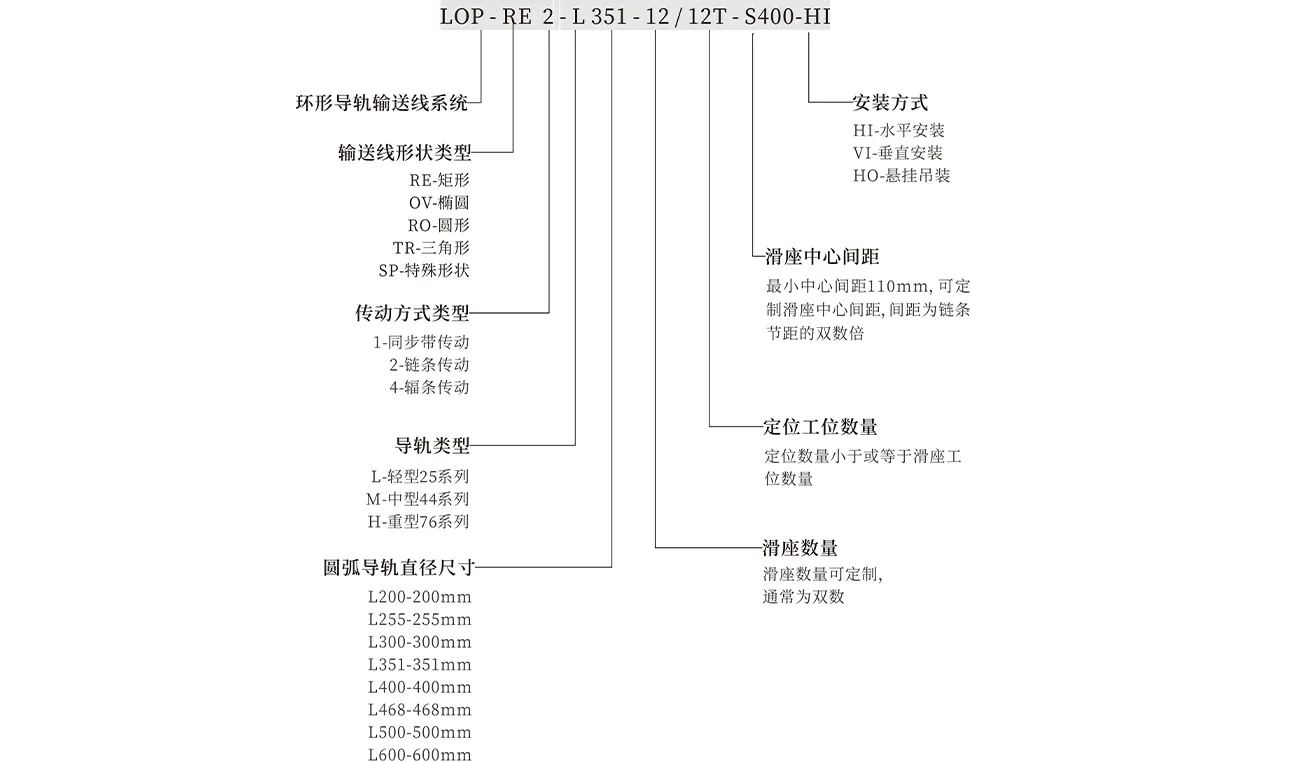

With multi-dimensional customizable/optional parameters, users with diverse needs can find suitable solutions, lowering the decision-making threshold:

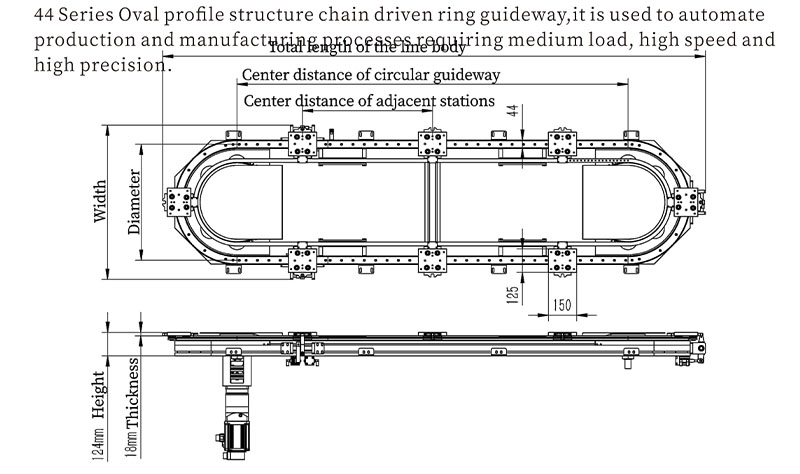

• Track Specifications: Optional sizes (23mm/25mm/44mm/76mm/customized)

• Installation Position: Supports horizontal or vertical installation

• System Integration: Can be integrated into existing systems without completely replacing the production line

• Drive Compatibility: With keyed input shaft, compatible with various motors or other drive solutions

• Track Shape: Optional elliptical or rectangular shape

• Length and Layout: Wide range of system size options, unlimited length, and customizable layout according to customer needs

• Special Versions: Corrosion-resistant versions are available, suitable for scenarios requiring rust/corrosion resistance (such as humid or chemical environments).
