Circular Conveyor Line—

INQUIRE NOW

Please leave your email address, our professionals will contact you as soon as possible!

PRODUCT DETAILS

3m/s/customized

Accordion cover/sheet metal protection

Repeatability: ±0.05mm

Chain drive / Belt drive / Synchronous belt drive

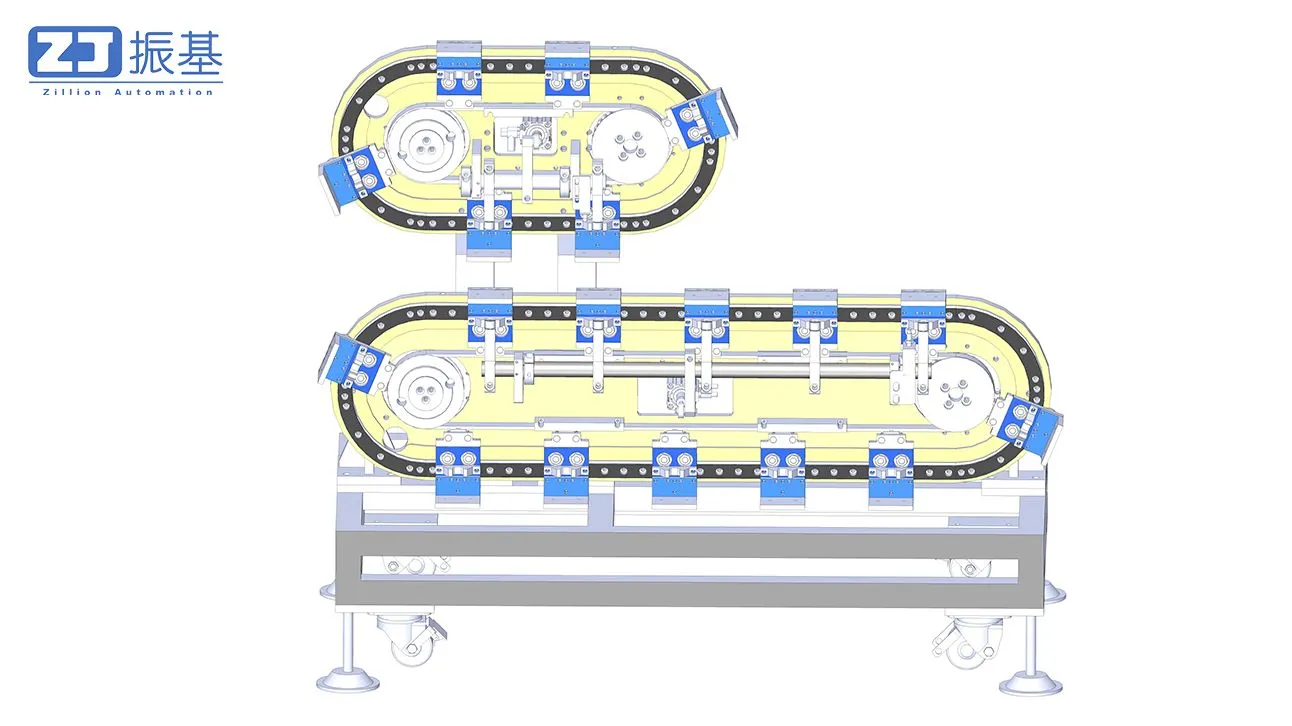

Oval-Loop Conveyor Line: Vertically Mounted Configuration with Baseplate Support and Belt Drive

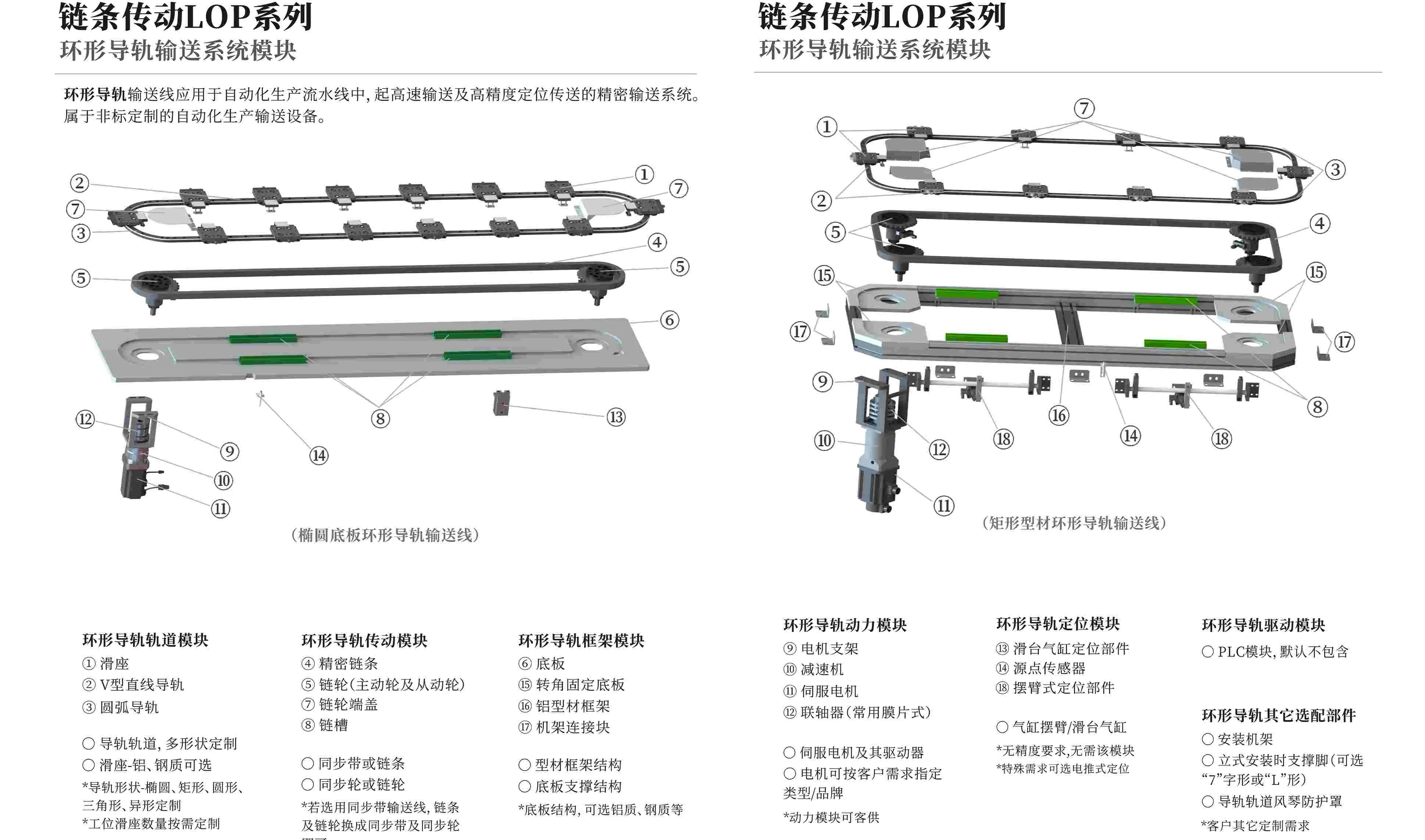

Structural Features:

○ Elliptical shape

○ Base plate structure

○ Precision chain drive

○ Servo drive

Application Features:

○ Long-distance conveying, with a circumference exceeding 100 meters.

○ Light-load conveying, good stability, maximum load per slider 25kg.

○ Intermittent manual operation possible, with multiple speed settings.

○ Repeat positioning accuracy ±0.05~±0.5mm (customizable).

Core Values: Space Optimization · Smooth & Low-Noise Operation · Convenient Maintenance

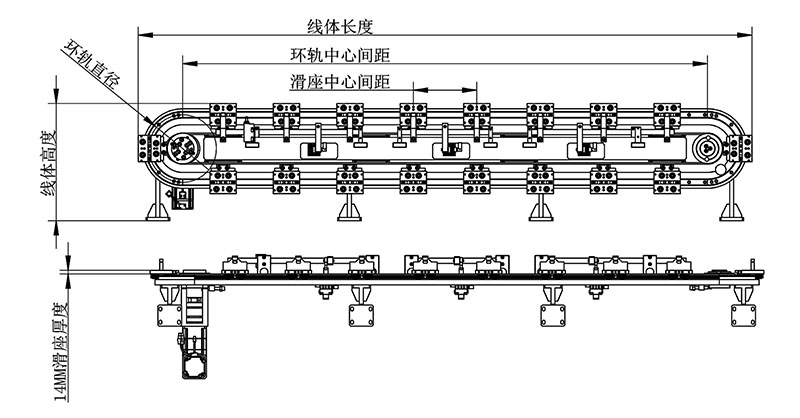

This circular conveyor line features an elliptical closed-loop track, a baseplate support structure, and a precision belt-drive design. Optimized specifically for vertical installation scenarios, it addresses critical pain points such as limited horizontal floor space in workshops, excessive conveying vibration, and cumbersome maintenance, making it ideally suited for the precision circulation of light-to-medium loads.

Maximized Space Utilization: Vertical installation saves 80% of horizontal floor space. The elliptical, corner-free layout fits seamlessly within the gaps between factory support columns, making it the perfect solution for production environments where vertical clearance is abundant but floor space is restricted.

Smooth, Low-Noise Transmission: The belt-drive mechanism ensures shock-free engagement, operating at noise levels of ≤55dB. It delivers a bump-free conveying experience, meeting the exacting requirements for the circulation of precision components.

Controllable Maintenance Costs: The belt-drive system requires no frequent lubrication. Combined with a sealed, dust-proof design, it reduces maintenance frequency by 70% compared to traditional chain-drive systems. Furthermore, the stable baseplate support structure minimizes long-term adjustment and calibration costs.

Core Performance: Precision and Stability, Vertical Stability, Environmental Adaptability

Precise and Stable Transmission: Synchronous belt engagement is precise, with a repeatability of ±0.1mm. The elliptical track seamlessly connects straight and curved sections, ensuring smooth steering without jamming or deviation.

Vertical Stability and Load Capacity: A single base plate enhances vertical installation rigidity, and the anti-tipping design ensures stable operation. A single slider can bear 50-150kg, suitable for medium to light load materials.

Clean and Low-Noise Adaptability: Belt drive prevents oil leakage, suitable for cleanrooms; operating noise ≤55dB, improving the workshop working environment and complying with industrial noise regulations.

Applicable scenarios: Medium and light load precision circulating conveying conditions

Common application industries
Battery production	Electronics manufacturing	Automotive parts manufacturing	Semiconductor chip manufacturing
(FMCG) Packaging Line	Printing industry	Medical device manufacturing	Aerospace component manufacturing
Biotechnology	Electrical production line	Precision Instrument Manufacturing	Robot manufacturing

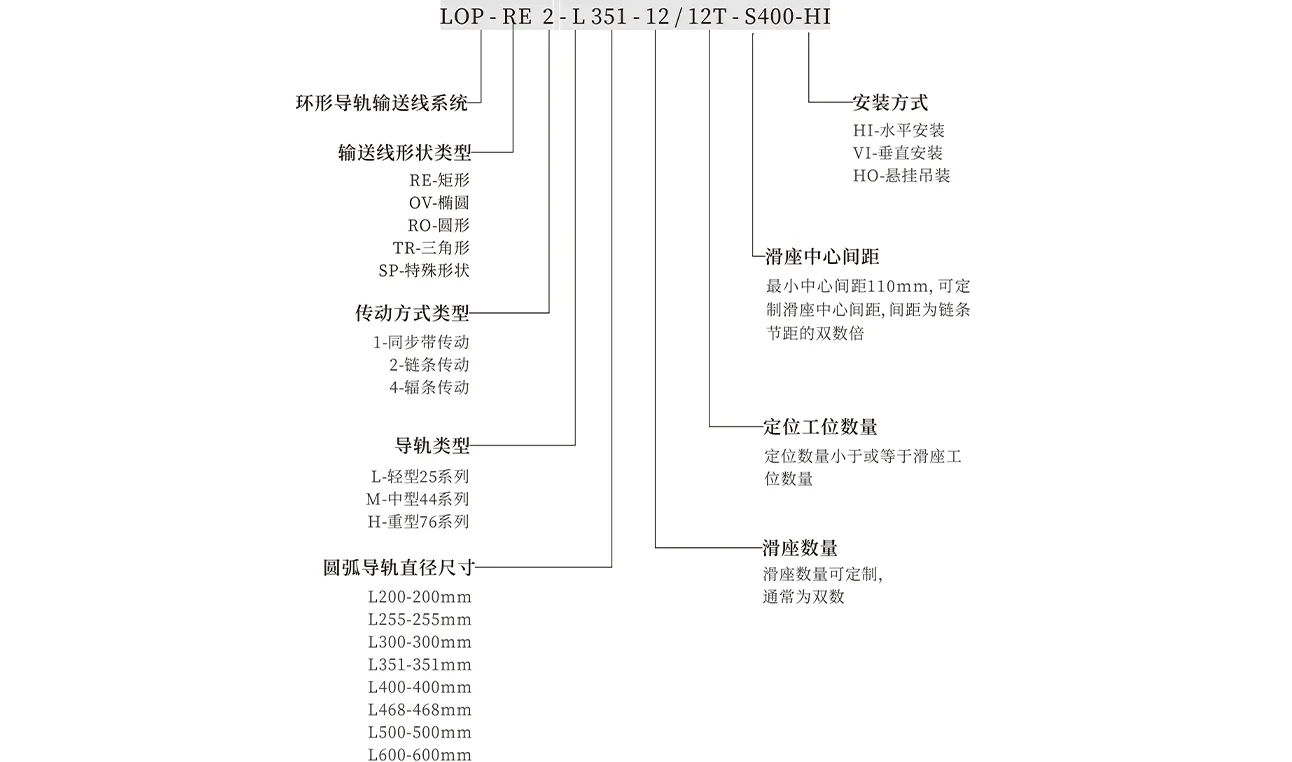

Specifications and Installation Flexibility: Meeting Individual Needs

• Rail Sizes: Two sizes available (25mm and 44mm)

• Mounting Options: Supports horizontal or vertical installation

• System Integration: Can be integrated into existing systems without completely replacing the production line

• Drive Compatibility: With keyed input shaft, compatible with various motors or other drive solutions

• Rail Shape: Elliptical or rectangular options available

• Length and Layout: Wide range of system sizes, unlimited length, customizable layout to meet specific customer needs

• Special Versions: Corrosion-resistant versions available for scenarios requiring rust/corrosion resistance (e.g., humid, chemical environments)

RELATED FAQ

Q: What types of circular guides are available?

According to their shape, they can be divided into elliptical circular guides, circular circular guides, rectangular guides, etc.;

According to the transmission method, they can be divided into synchronous belt circular guides and chain circular guides

Q: What is the accuracy of circular guides?

The repeat positioning accuracy can reach ±0.05mm, depending on the design and manufacturing process of the guide and the quality of the selected components and other factors

Q: How harsh a production environment can it adapt to?

IP65 protection level is optional, supporting a temperature range of -20℃ to 80℃, and an accordion cover is required for dust and humid environments.

Q: Customization and compatibility?

According to the specific requirements of customers, such as guide shape, size, load capacity, accuracy requirements, transmission method, etc., customized circular guide systems are provided for customers

Third-party compatibility: Supports seamless docking with ABB, KUKA robotic arms and Keyence, Cognex vision systems, and provides standardized communication protocols.

Q: Is the circular guide conveyor line adaptable to industry?

Automobile manufacturing, electronics industry, pharmaceutical packaging, daily chemical products, aerospace technology, new energy batteries, scientific research monitoring, etc.
